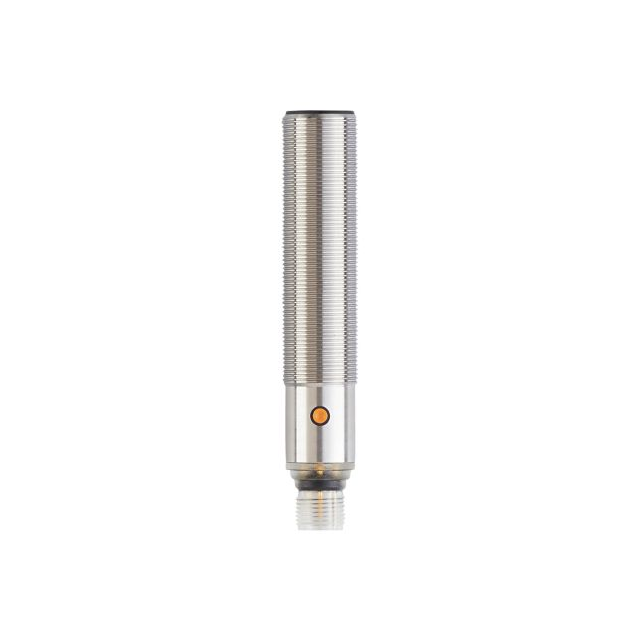

Specification	UGT515

Indicator	LED
Ingress Protection	IP67
Material - Body	Polyamide (PA), Stainless Steel
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-20 °C
Output Type	NO, 3-Wire, NPN-NC
Package / Case	Cylinder, Threaded - M18
Sensing Distance Maximum	62.992 "
Sensing Distance Minimum	5.906 "
Sensor Type	Ultrasonic
Shielding	Unshielded
Termination Style	Connector
Voltage - Supply (Maximum)	30 VDC
Voltage - Supply (Minimum)	10 VDC
