PEWAN137-15NF

PEWAN137-15NF

Active
Pasternack

WR137 GAIN HRN 5.85-8.2GHZ 15DBI

Find alt
PEWAN137-15NF

PEWAN137-15NF

Active
Pasternack

WR137 GAIN HRN 5.85-8.2GHZ 15DBI

Find alt

Description

General part information

PEWAN137-15NF

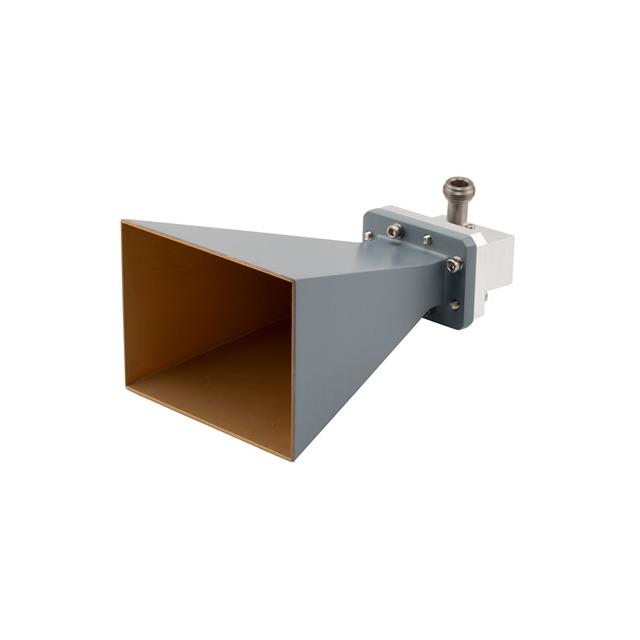

RF ANTENNA General Purpose Horn N Type Female Waveguide Mount

Technical Specifications

Parameters and characteristics for this part

SpecificationPEWAN137-15NF
Antenna TypeHorn
ApplicationsGeneral Purpose
Frequency (Center/Band)7.025 GHz
Frequency GroupWide Band
Frequency Range (Max)8.2 GHz
Frequency Range (Min)5.85 GHz
Gain15 dBi
Height (Max)2.669 in
Mounting TypeWaveguide Mount
Number of Bands1
RF Family/StandardWiFi
TerminationN Type Female
VSWR1.3

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — freeLog in

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

No documents available
