MASWCC0010
ActiveMACOM Technology Solutions

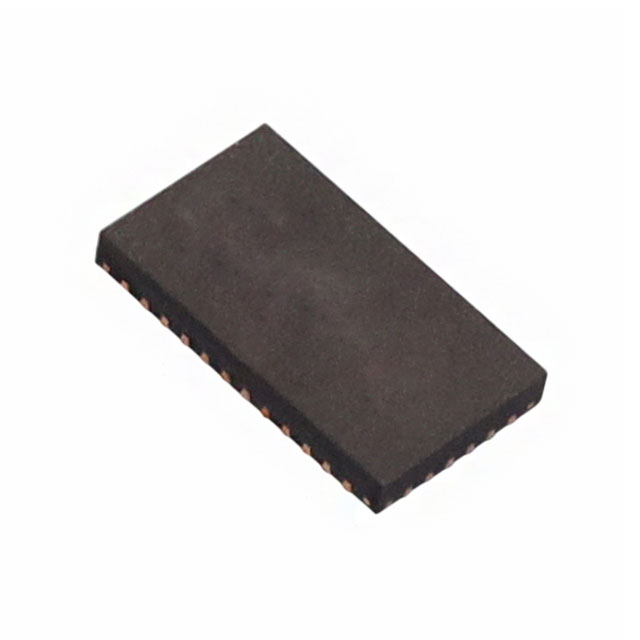

IC RF SWITCH SP4T 4GHZ 36QFN
MASWCC0010
ActiveMACOM Technology Solutions
IC RF SWITCH SP4T 4GHZ 36QFN
Description
General part information
MASWCC0010
RF Switch IC General Purpose SP4T 50Ohm 36-PQFN, CSP (4x7)
Technical Specifications
Parameters and characteristics for this part
| Specification | MASWCC0010 |
|---|---|
| Circuit | SP4T |
| Frequency Range (Max) | 4 GHz |
| Frequency Range (Min) | 0 Hz |
| IIP3 | 40 dBm |
| Impedance | 50 Ohm |
| Insertion Loss (max) | 2.3 dB |
| Isolation (Min) | 38 dB |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| P1dB | 27 dBm |
| Package / Case | CSP, 36-VFQFN Exposed Pad |
| Package Length | 4 mm |
| Package Name | CSP, 36-PQFN |
| Package Width | 7 mm |
| RF Type | General Purpose |
| Test Frequency | 4 GHz |
| Topology | Absorptive |
| Voltage - Supply (Maximum) | 5.5 V |
| Voltage - Supply (Minimum) | 4.5 V |
