Description
General part information

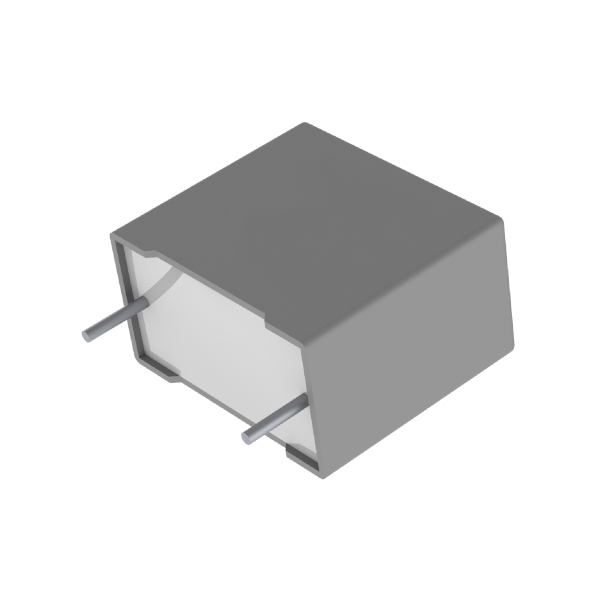

R413I2100JHT0K
10000 pF Film Capacitor 300V 1500V (1.5kV) Polypropylene (PP), Metallized Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | R413I2100JHT0K |
|---|---|
| Applications | EMI, Automotive, RFI Suppression |
| Capacitance | 10000 pF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| Height - Seated (Max) | 0.437 in |
| Lead Spacing | 0.591 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Radial |
| Ratings | AEC-Q200, Y2, X1 |
| Size / Dimension Length | 0.709 in |
| Size / Dimension Width | 0.197 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - AC | 300 V |
| Voltage Rating - DC | 1500 V |
