4794RX5 B59500
ActiveBelden Inc.

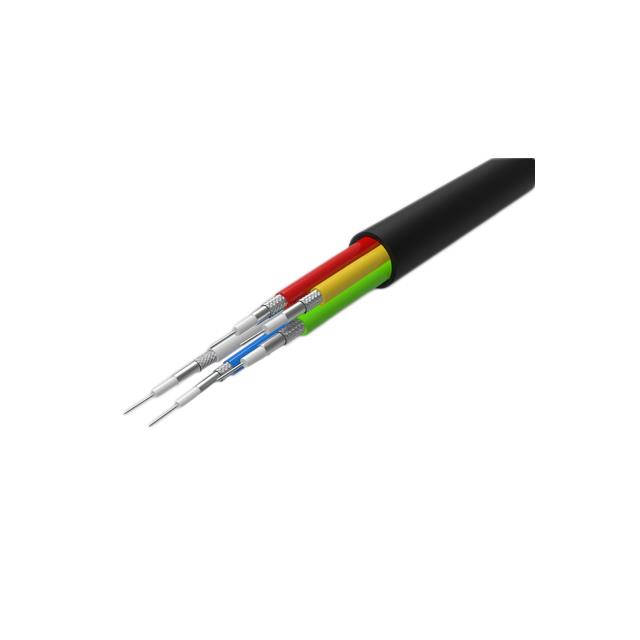

5 #16 4K UHD COAX 12 GHZ
4794RX5 B59500
ActiveBelden Inc.
5 #16 4K UHD COAX 12 GHZ
Description
General part information
4794RX5 B59500
Coaxial Cable 16 AWG RG-7 500.0' (152.40m) 75 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | 4794RX5 B59500 |
|---|---|
| Cable Group | RG-7 |
| Cable Type | Coaxial |
| Conductor Material | Copper, Silver Coated |
| Conductor Strand | Solid |
| Dielectric Diameter | 0.225 in |
| Dielectric Material | Polyethylene (PE) |
| Impedance | 75 Ohm |
| Jacket (Insulation) Diameter | 1.068 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Black |
| Length | 500 ft |
| Operating Temperature (Max) | 75 °C |
| Operating Temperature (Min) | -20 °C |
| Shield Coverage | 100%, 95% |
| Shield Material | Aluminum, Tinned, Copper |
| Shield Type | Braid, Foil |
| Velocity of Propagation (VoP) | 84 % |
| Wire Gauge | 16 AWG |
