8PCV-08-006
ActiveTE Connectivity AMP Connectors
CONN BARRIER STRIP 8CIRC 0.438"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
8PCV-08-006
ActiveTE Connectivity AMP Connectors
CONN BARRIER STRIP 8CIRC 0.438"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 8PCV-08-006 | 8PCV Series |
|---|---|---|
| Barrier Type | 3 Wall (Tri) | 3 Wall (Tri) |
| Bottom Termination | PC Pin | PC Pin |
| Color | Black | Black |
| Current Rating (Amps) | 30 A | 30 A |
| Features | - | Flange |
| Material - Insulation | Thermoplastic | Thermoplastic |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole, Chassis, Panel |
| Number of Circuits | - | 2 - 15 |
| Number of Circuits [custom] | 8 | 8 |
| Number of Rows | 1 | 1 |
| Number of Wire Entries | 8 | 2 - 15 |
| Operating Temperature [Max] | 120 °C | 120 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch [x] | 11.12 mm | 11.12 mm |
| Pitch [x] | 0.438 in | 0.438 in |
| Terminal Block Type | Barrier Block | Barrier Block |
| Terminal Screw Finish | Zinc | Zinc |
| Terminal Screw Material | Steel | Steel |
| Top Termination | Screws with Captive Plate | Screws with Captive Plate, Screws |
| Voltage Rating | 600 V | 600 V |
| Wire Gauge [Max] | 18 AWG | 18 AWG |
| Wire Gauge [Min] | 10 AWG | 10 AWG |
8PCV Series
CONN BARRIER STRIP 5CIRC 0.438"
| Part | Wire Gauge [Min] | Wire Gauge [Max] | Voltage Rating | Number of Rows | Top Termination | Current Rating (Amps) | Material - Insulation | Pitch [x] | Pitch [x] | Terminal Screw Finish | Number of Wire Entries | Terminal Screw Material | Mounting Type | Bottom Termination | Terminal Block Type | Number of Circuits | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Barrier Type | Color | Features | Number of Circuits [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 8PCV-05-006 | 10 AWG | 18 AWG | 600 V | 1 | Screws with Captive Plate | 30 A | Thermoplastic | 11.12 mm | 0.438 in | Zinc | 5 | Steel | Through Hole | PC Pin | Barrier Block | 5 | UL94 V-0 | -40 °C | 120 °C | 3 Wall (Tri) | Black | ||
TE Connectivity AMP Connectors 8PCV-07-006 | 10 AWG | 18 AWG | 600 V | 1 | Screws with Captive Plate | 30 A | Thermoplastic | 11.12 mm | 0.438 in | Zinc | 7 | Steel | Through Hole | PC Pin | Barrier Block | 7 | UL94 V-0 | -40 °C | 120 °C | 3 Wall (Tri) | Black | ||
TE Connectivity AMP Connectors 8PCV-02-008 | 10 AWG | 18 AWG | 600 V | 1 | Screws with Captive Plate | 30 A | Thermoplastic | 11.12 mm | 0.438 in | Zinc | 2 | Steel | Chassis, Panel, Through Hole | PC Pin | Barrier Block | 2 | UL94 V-0 | -40 °C | 120 °C | 3 Wall (Tri) | Black | Flange | |
TE Connectivity AMP Connectors 8PCV-02-006 | 10 AWG | 18 AWG | 600 V | 1 | Screws with Captive Plate | 30 A | Thermoplastic | 11.12 mm | 0.438 in | Zinc | 2 | Steel | Through Hole | PC Pin | Barrier Block | 2 | UL94 V-0 | -40 °C | 120 °C | 3 Wall (Tri) | Black | ||
TE Connectivity AMP Connectors 8PCV-04-006 | 10 AWG | 18 AWG | 600 V | 1 | Screws with Captive Plate | 30 A | Thermoplastic | 11.12 mm | 0.438 in | Zinc | 4 | Steel | Through Hole | PC Pin | Barrier Block | 4 | UL94 V-0 | -40 °C | 120 °C | 3 Wall (Tri) | Black | ||
TE Connectivity AMP Connectors 8PCV-02-007 | 10 AWG | 18 AWG | 600 V | 1 | Screws | 30 A | Thermoplastic | 11.12 mm | 0.438 in | Zinc | 2 | Steel | Through Hole | PC Pin | Barrier Block | 2 | UL94 V-0 | -40 °C | 120 °C | 3 Wall (Tri) | Black | ||
TE Connectivity AMP Connectors 8PCV-15-006 | 10 AWG | 18 AWG | 600 V | 1 | Screws with Captive Plate | 30 A | Thermoplastic | 11.12 mm | 0.438 in | Zinc | 15 | Steel | Through Hole | PC Pin | Barrier Block | 15 | UL94 V-0 | -40 °C | 120 °C | 3 Wall (Tri) | Black | ||
TE Connectivity AMP Connectors 8PCV-12-007 | 10 AWG | 18 AWG | 600 V | 1 | Screws | 30 A | Thermoplastic | 11.12 mm | 0.438 in | Zinc | 12 | Steel | Through Hole | PC Pin | Barrier Block | 12 | UL94 V-0 | -40 °C | 120 °C | 3 Wall (Tri) | Black | ||
TE Connectivity AMP Connectors 8PCV-11-007 | 10 AWG | 18 AWG | 600 V | 1 | Screws | 30 A | Thermoplastic | 11.12 mm | 0.438 in | Zinc | 11 | Steel | Through Hole | PC Pin | Barrier Block | 11 | UL94 V-0 | -40 °C | 120 °C | 3 Wall (Tri) | Black | ||
TE Connectivity AMP Connectors 8PCV-03-008 | 10 AWG | 18 AWG | 600 V | 1 | Screws with Captive Plate | 30 A | Thermoplastic | 11.12 mm | 0.438 in | Zinc | 3 | Steel | Chassis, Panel, Through Hole | PC Pin | Barrier Block | 3 | UL94 V-0 | -40 °C | 120 °C | 3 Wall (Tri) | Black | Flange |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.29 | |
| 10 | $ 3.76 | |||
| 25 | $ 3.66 | |||
| 80 | $ 3.59 | |||
| 160 | $ 3.47 | |||
Description
General part information
8PCV Series

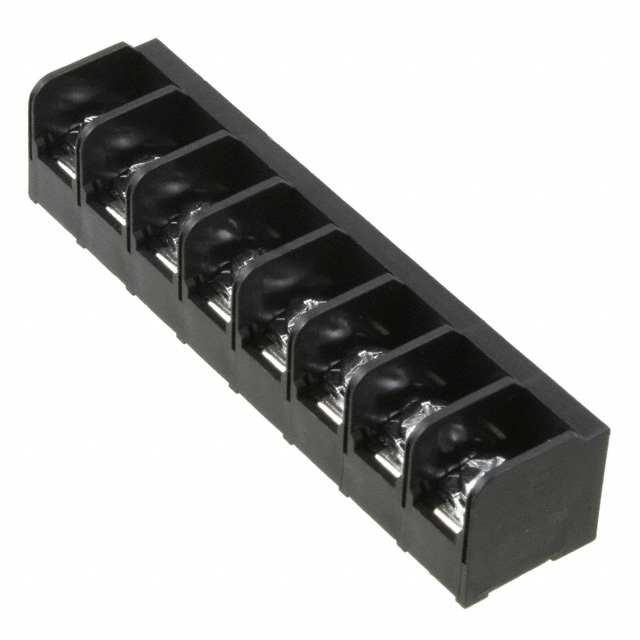

8 Circuit 0.438" (11.12mm) Barrier Block Connector Screws with Captive Plate
