35HDSAU17
ActiveSwitchcraft Inc.
PHONE CONNECTORS 3.5MM SLD STEREO PLG .17 GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
35HDSAU17
ActiveSwitchcraft Inc.
PHONE CONNECTORS 3.5MM SLD STEREO PLG .17 GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 35HDSAU17 | 35HDSA Series |
|---|---|---|
| Actual Diameter [diameter] | 3.56 mm | 3.56 mm |
| Actual Diameter [diameter] | 0.14 in | 0.14 in |
| Body Color | Gold, Black | Gold, Black |
| Body Material | Copper Alloy | Copper Alloy |
| Cable Opening | - | 3.18 mm |
| Cable Opening | - | 0.125 - 0.15 in |
| Cable Opening | - | 3.81 mm |
| Cable Opening | - | 0.15 - 0.175 in |
| Cable Opening | - | 3.81 - 4.45 mm |
| Cable Opening [Max] [custom] | 0.21 in | 0.21 in |
| Cable Opening [Max] [custom] | 5.33 mm | 5.33 mm |
| Cable Opening [Min] [custom] | 4.45 mm | 4.45 mm |
| Cable Opening [Min] [custom] | 0.175 in | 0.175 in |
| Connector Type | Phone Plug | Phone Plug |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Material - Plating [custom] | Gold | Gold |
| Current Rating (Amps) | 4 A | 4 A |
| Features | Sealed, Strain Relief | Sealed, Strain Relief |
| Gender | Male | Male |
| Housing Material | Copper Alloy | Copper Alloy |

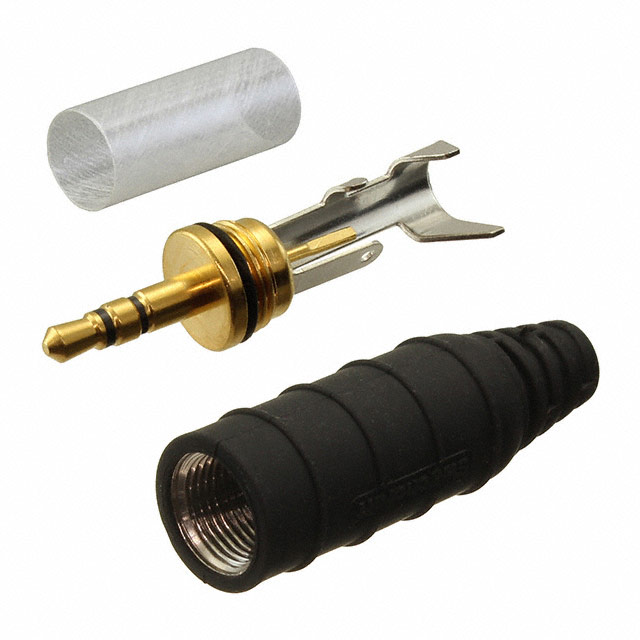

| Includes | 1 Handle, 1 O-Ring, 1 Insulator Tube, 1 Connector | 1 Handle, 1 O-Ring, 1 Insulator Tube, 1 Connector |
| Industry Recognized Mating Diameter | 0.141 " | 0.141 " |
| Industry Recognized Mating Diameter | 0.125 " | 0.125 " |
| Industry Recognized Mating Diameter | 3.5 mm | 3.5 mm |
| Internal Switch(s) | False | False |
| Mating Length/Depth | 14.2 mm | 14.2 mm |
| Mating Length/Depth | 0.56 in | 0.56 in |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions/Contacts [custom] | 3 | 3 |
| Number of Positions/Contacts [custom] | 3 | 3 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -20 C | -20 C |
| Shielding | Unshielded | Unshielded |
| Signal Lines | Stereo | Stereo |
| Termination | Solder Eyelet(s) | Solder Eyelet(s) |
35HDSA Series
Phone Connectors 3.5mm Locking Blk Body Nickel Pin
| Part | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Actual Diameter [diameter] | Actual Diameter [diameter] | Contact Material - Plating [custom] | Body Color | Mating Length/Depth | Mating Length/Depth | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Shielding | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Signal Lines | Body Material | Gender | Includes | Termination | Contact Material | Internal Switch(s) | Mounting Type | Housing Material | Features | Current Rating (Amps) | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Cable Opening [diameter] | Cable Opening [diameter] | Cable Opening [diameter] | Cable Opening [custom] | Cable Opening [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. 35HDSAU17 | 3 | 3 | 3.56 mm | 0.14 in | Gold | Black, Gold | 14.2 mm | 0.56 in | 4.45 mm | 0.21 in | 5.33 mm | 0.175 in | Unshielded | 85 °C | -20 C | Phone Plug | Stereo | Copper Alloy | Male | 1 Connector, 1 Handle, 1 Insulator Tube, 1 O-Ring | Solder Eyelet(s) | Copper Alloy | Free Hanging (In-Line) | Copper Alloy | Sealed, Strain Relief | 4 A | 0.141 " | 0.125 " | 3.5 mm | ||||||
Switchcraft Inc. 35HDSAU12 | 3 | 3 | 3.56 mm | 0.14 in | Gold | Black, Gold | 14.2 mm | 0.56 in | Unshielded | 85 °C | -20 C | Phone Plug | Stereo | Copper Alloy | Male | 1 Connector, 1 Handle, 1 Insulator Tube, 1 O-Ring | Solder Eyelet(s) | Copper Alloy | Free Hanging (In-Line) | Copper Alloy | Sealed, Strain Relief | 4 A | 0.141 " | 0.125 " | 3.5 mm | 3.18 mm | 0.125 in, 0.15 in | 3.81 mm | |||||||
Switchcraft Inc. 35HDSAU15 | 3 | 3 | 3.56 mm | 0.14 in | Gold | Black, Gold | 14.2 mm | 0.56 in | Unshielded | 85 °C | -20 C | Phone Plug | Stereo | Copper Alloy | Male | 1 Connector, 1 Handle, 1 Insulator Tube, 1 O-Ring | Solder Eyelet(s) | Copper Alloy | Free Hanging (In-Line) | Copper Alloy | Sealed, Strain Relief | 4 A | 0.141 " | 0.125 " | 3.5 mm | 0.15 in, 0.175 in | 3.81 mm, 4.45 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
35HDSA Series
Phone Connectors 3.5mm Locking Blk Body Nickel Pin
