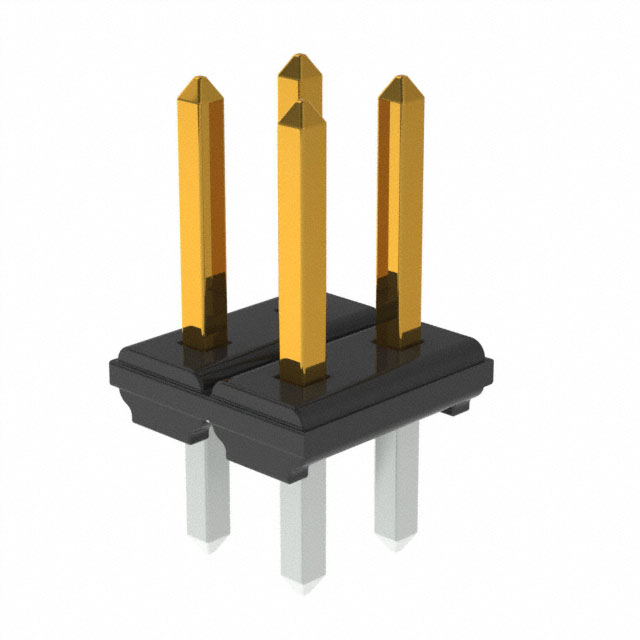

XJ8C-0411
ActiveOmron Electronics Inc-EMC Div
CONN HEADER VERT 4POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
XJ8C-0411
ActiveOmron Electronics Inc-EMC Div
CONN HEADER VERT 4POS 2.54MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | XJ8C-0411 | XJ8C Series |
|---|---|---|
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 0.15 µm | 0.15 µm |
| Contact Finish Thickness - Mating | 5.9 µin | 5.9 µin |
| Contact Length - Mating [x] | 4.3 mm | 4.3 mm |
| Contact Length - Mating [x] | 0.169 in | 0.169 in |
| Contact Length - Post | 2.79 mm | 2.79 mm |
| Contact Length - Post [x] | 0.11 in | 0.11 in |
| Contact Material | Brass, Nickel | Brass, Nickel |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | 2 A | 2 A |
| Fastening Type | Push-Pull | Push-Pull |
| Insulation Color | Black | Black |
| Insulation Height | 1.5 mm | 1.5 mm |
| Insulation Height | 0.059 " | 0.059 " |
| Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled | Polyphenylene Sulfide (PPS), Glass Filled |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | 4 | 2 - 4 |
| Number of Positions | - | 16 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Overall Contact Length | 8.6 mm | 8.6 mm |
| Overall Contact Length | 0.339 in | 0.339 in |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in | 0.1 in |
| Shrouding | Unshrouded | Unshrouded |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder | Solder |
| Voltage Rating | 300 VDC | 300 VDC |
XJ8C Series
CONN HEADER VERT 16POS 2.54MM
| Part | Number of Rows | Current Rating (Amps) | Number of Positions | Contact Type | Style | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Contact Length - Post [x] | Contact Length - Post | Connector Type | Voltage Rating | Contact Length - Mating [x] | Contact Length - Mating [x] | Termination | Material Flammability Rating | Shrouding | Insulation Height | Insulation Height | Pitch - Mating | Pitch - Mating | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Insulation Material | Contact Finish - Mating | Number of Positions Loaded | Overall Contact Length | Overall Contact Length | Fastening Type | Insulation Color | Contact Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Shape | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Omron Electronics Inc-EMC Div XJ8C-1611 | 2 | 2 A | 16 | Male Pin | Board to Board, Cable | 105 ░C | -55 °C | Through Hole | 0.11 in | 2.79 mm | Header | 300 VDC | 4.3 mm | 0.169 in | Solder | UL94 V-0 | Unshrouded | 1.5 mm | 0.059 " | 0.1 in | 2.54 mm | 2.54 mm | 0.1 in | Polyphenylene Sulfide (PPS), Glass Filled | Gold | All | 8.6 mm | 0.339 in | Push-Pull | Black | Brass, Nickel | 0.15 µm | 5.9 µin | Square | |
Omron Electronics Inc-EMC Div XJ8C-0211 | 2 | 2 A | Male Pin | Board to Board, Cable | 105 ░C | -55 °C | Through Hole | 0.11 in | 2.79 mm | Header | 300 VDC | 4.3 mm | 0.169 in | Solder | UL94 V-0 | Unshrouded | 1.5 mm | 0.059 " | 2.54 mm | 0.1 in | Polyphenylene Sulfide (PPS), Glass Filled | Gold | All | 8.6 mm | 0.339 in | Push-Pull | Black | Brass, Nickel | 0.15 µm | 5.9 µin | Square | 2 | |||
Omron Electronics Inc-EMC Div XJ8C-0411 | 2 | 2 A | Male Pin | Board to Board, Cable | 105 ░C | -55 °C | Through Hole | 0.11 in | 2.79 mm | Header | 300 VDC | 4.3 mm | 0.169 in | Solder | UL94 V-0 | Unshrouded | 1.5 mm | 0.059 " | 0.1 in | 2.54 mm | 2.54 mm | 0.1 in | Polyphenylene Sulfide (PPS), Glass Filled | Gold | All | 8.6 mm | 0.339 in | Push-Pull | Black | Brass, Nickel | 0.15 µm | 5.9 µin | Square | 4 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.05 | |
| 10 | $ 0.89 | |||
| 100 | $ 0.80 | |||
| 500 | $ 0.65 | |||
| 1000 | $ 0.58 | |||
| 5000 | $ 0.51 | |||
| 10000 | $ 0.48 | |||
Description
General part information
XJ8C Series
Connector Header Through Hole 4 position 0.100" (2.54mm)
