SME2470-021
ObsoleteHoneywell Sensing and Productivity Solutions

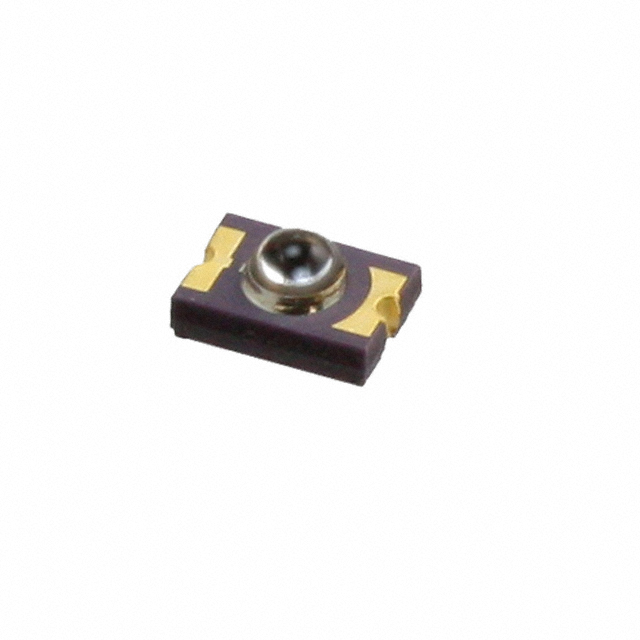

EMITTER IR 880NM 75MA SMD
SME2470-021
ObsoleteHoneywell Sensing and Productivity Solutions
EMITTER IR 880NM 75MA SMD
Description
General part information
SME2470-021
Infrared (IR) Emitter 880nm 1.5V 75mA 0.6mW/cm˛ @ 50mA 2-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | SME2470-021 |
|---|---|
| Current - DC Forward (If) (Max) | 75 mA |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Orientation | Top View |
| Package / Case | No Lead, 2-SMD |
| Radiant Intensity (Ie) Min | 0.6 mW/cm², 0.6 mW/cm² |
| Type | Infrared (IR) |
| Voltage - Forward (Vf) (Typ) | 1.5 V |
| Wavelength | 880 nm |
