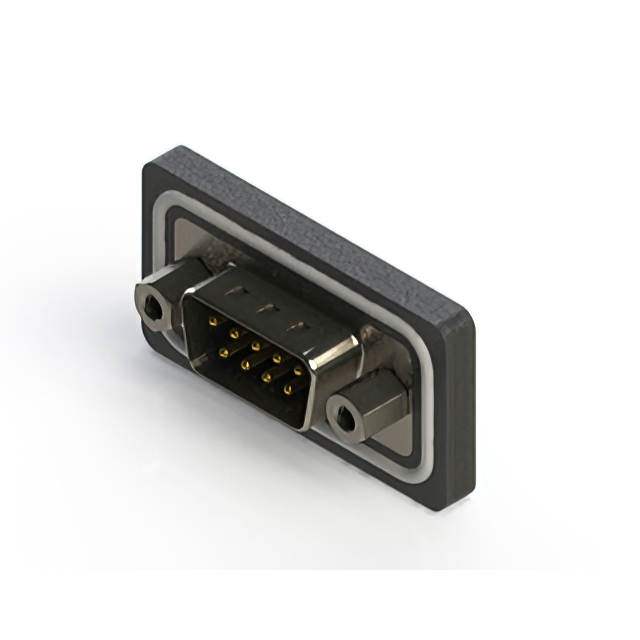

629-W09-340-012

Active

EDAC Inc.

629W (WATERPROOF) SERIES RIGHT A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

629-W09-340-012

Active

EDAC Inc.

629W (WATERPROOF) SERIES RIGHT A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	629-W09-340-012

Backset Spacing	0.406 in
Backset Spacing	10.3 mm
Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA6T), Nylon 6T
Features	Grounding Indents, Shielded
Flange Feature	Female Screwlock (4-40), Mating Side
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Solder

629-W09 Series

Part	Color	Current Rating (Amps)	Backset Spacing	Backset Spacing	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Number of Positions	Ingress Protection	Connector Style	Connector Type	Flange Feature	Features	Contact Finish	Number of Rows	Contact Material	Contact Type	Material Flammability Rating	Dielectric Material	Mounting Type	Shell Material, Finish	Contact Finish Thickness	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 629-W09-240-012	Black	5 A	0.406 in	10.3 mm	DE E	1	9	IP67 - Dust Tight Waterproof	Combo D-Sub	Male Pins Plug	Female Screwlock (4-40) Mating Side	Grounding Indents	Gold	2	Copper Alloy	Signal	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	Panel Mount Right Angle Through Hole	Nickel Plated Steel	Flash	Solder	-55 °C	125 °C
EDAC Inc. 629-W09-340-015	Black	5 A	0.406 in	10.3 mm	DE E	1	9	IP67 - Dust Tight Waterproof	Combo D-Sub	Male Pins Plug	Female Screwlock (4-40) Mating Side	Grounding Indents Mounting Brackets Shielded	Gold	2	Copper Alloy	Signal	UL94 V-0	Polyamide (PA6T) Nylon 6T	Through Hole Right Angle	Nickel Plated Steel		Solder	-55 °C	125 °C	15 µin	0.38 µm
EDAC Inc. 629-W09-340-012	Black	5 A	0.406 in	10.3 mm	DE E	1	9	IP67 - Dust Tight Waterproof	Combo D-Sub	Male Pins Plug	Female Screwlock (4-40) Mating Side	Grounding Indents Shielded	Gold	2	Copper Alloy	Signal	UL94 V-0	Polyamide (PA6T) Nylon 6T	Through Hole Right Angle	Nickel Plated Steel		Solder	-55 °C	125 °C	15 µin	0.38 µm
EDAC Inc. 629-W09-640-015	Black	5 A	0.406 in	10.3 mm	DE E	1	9	IP67 - Dust Tight Waterproof	Combo D-Sub	Male Pins Plug	Female Screwlock (4-40) Mating Side	Grounding Indents Mounting Brackets Shielded	Gold	2	Copper Alloy	Signal	UL94 V-0	Polyamide (PA6T) Nylon 6T	Through Hole Right Angle	Nickel Plated Steel		Solder	-55 °C	125 °C	30 Áin	0.76 Ám
EDAC Inc. 629-W09-640-012	Black	5 A	0.406 in	10.3 mm	DE E	1	9	IP67 - Dust Tight Waterproof	Combo D-Sub	Male Pins Plug	Female Screwlock (4-40) Mating Side	Grounding Indents Shielded	Gold	2	Copper Alloy	Signal	UL94 V-0	Polyamide (PA6T) Nylon 6T	Through Hole Right Angle	Nickel Plated Steel		Solder	-55 °C	125 °C	30 Áin	0.76 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	300	$ 10.58

Description

General part information

629-W09 Series

9 Position D-Sub, Combo Plug, Male Pins Connector
