Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T1509030500-000 | T150 Series |
|---|---|---|
| Connector Type | Base - Panel Mount | Base - Panel Mount, Base - Panel Mount 90° |
| Housing Color | Gray | Gray, Red |
| Housing Finish | Powder Coated | Powder Coated |
| Housing Material | Zinc Alloy, Die Cast | Polycarbonate (PC), Aluminum Alloy, Die Cast, Zinc Alloy, Die Cast |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (1) on Base Bottom | Locking Clip (1) on Base Bottom |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Size | H3A | H3A, H48B, H32B, H16A, H24B, H6B, H16B, H10A |
| Size / Dimension [x] | 1.661 " | 1.661 - 5.598 " |
| Size / Dimension [x] | 42.2 mm | 42.2 - 142.2 mm |
| Size / Dimension [y] | 1.189 " | 1.189 - 3.307 " |
| Size / Dimension [y] | 30.2 mm | 30.2 - 84 mm |
| Size / Dimension [z] | 0.945 " | 0.945 - 1.48 in |
| Size / Dimension [z] | 24 mm | 24 - 37.6 mm |
| Style | Bottom Entry | Bottom Entry, Side Entry |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.07 | |
| 10 | $ 2.73 | |||
| 30 | $ 2.72 | |||
| 50 | $ 2.69 | |||
| 100 | $ 2.45 | |||
T150 Series
H3A-AG
| Part | Lock Location | Operating Temperature [Max] | Operating Temperature [Min] | Housing Material | Connector Type | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size | Ingress Protection | Style | Housing Color | Housing Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T1509031100-000 | Locking Clip (1) on Base Bottom | 125 °C | -40 °C | Polycarbonate (PC) | Base - Panel Mount | 25 mm | 1.189 " | 30.2 mm | 0.984 in | 42.2 mm | 1.661 " | H3A | IP65 - Dust Tight, Water Resistant | Bottom Entry | ||
TE Connectivity AMP Connectors T1500482000-000 | Locking Clip (1) on Base Bottom | 125 °C | -40 °C | Aluminum Alloy, Die Cast | Base - Panel Mount | H48B | IP65 - Dust Tight, Water Resistant | Bottom Entry | Gray | |||||||
TE Connectivity AMP Connectors T1509030500-000 | Locking Clip (1) on Base Bottom | 125 °C | -40 °C | Zinc Alloy, Die Cast | Base - Panel Mount | 24 mm | 1.189 " | 30.2 mm | 0.945 " | 42.2 mm | 1.661 " | H3A | IP65 - Dust Tight, Water Resistant | Bottom Entry | Gray | Powder Coated |
TE Connectivity AMP Connectors T1500322000-000 | Locking Clip (1) on Base Bottom | 125 °C | -40 °C | Aluminum Alloy, Die Cast | Base - Panel Mount | 37.6 mm | 3.307 " | 84 mm | 1.48 " | 125.5 mm | 4.941 " | H32B | IP65 - Dust Tight, Water Resistant | Bottom Entry | Gray | Powder Coated |
TE Connectivity AMP Connectors T1509161000-000 | Locking Clip (1) on Base Bottom | 125 °C | -40 °C | Aluminum Alloy, Die Cast | Base - Panel Mount | 27 mm | 1.331 " | 33.8 mm | 1.063 " | 98.7 mm | 3.886 " | H16A | IP65 - Dust Tight, Water Resistant | Bottom Entry | Gray | Powder Coated |
TE Connectivity AMP Connectors T1500243000-000 | Locking Clip (1) on Base Bottom | 125 °C | -40 °C | Aluminum Alloy, Die Cast | Base - Panel Mount | 29.8 mm | 1.799 " | 45.7 mm | 1.173 in | 142.2 mm | 5.598 in | H24B | IP65 - Dust Tight, Water Resistant | Bottom Entry | Gray | Powder Coated |
TE Connectivity AMP Connectors T1503063000-000 | Locking Clip (1) on Base Bottom | 125 °C | -40 °C | Aluminum Alloy, Die Cast | Base - Panel Mount | 29.8 mm | 1.799 " | 45.7 mm | 1.173 in | 82 mm | 3.228 in | H6B | IP65 - Dust Tight, Water Resistant | Bottom Entry | Red | Powder Coated |
TE Connectivity AMP Connectors T1500163000-100 | Locking Clip (1) on Base Bottom | 125 °C | -40 °C | Aluminum Alloy, Die Cast | Base - Panel Mount | H16B | IP65 - Dust Tight, Water Resistant | Bottom Entry | Gray | Powder Coated | ||||||
TE Connectivity AMP Connectors T1509101000-000 | Locking Clip (1) on Base Bottom | 125 °C | -40 °C | Aluminum Alloy, Die Cast | Base - Panel Mount | 27 mm | 1.331 " | 33.8 mm | 1.063 " | 84 mm | 3.307 in | H10A | IP65 - Dust Tight, Water Resistant | Bottom Entry | Gray | Powder Coated |
TE Connectivity AMP Connectors T1509031111-000 | Locking Clip (1) on Base Bottom | 125 °C | -40 °C | Polycarbonate (PC) | Base - Panel Mount 90° | H3A | IP65 - Dust Tight, Water Resistant | Side Entry | ||||||||
TE Connectivity AMP Connectors T1500162000-000 | Locking Clip (1) on Base Bottom | 125 °C | -40 °C | Aluminum Alloy, Die Cast | Base - Panel Mount | H16B | IP65 - Dust Tight, Water Resistant | Bottom Entry | Gray |
Description
General part information
T150 Series

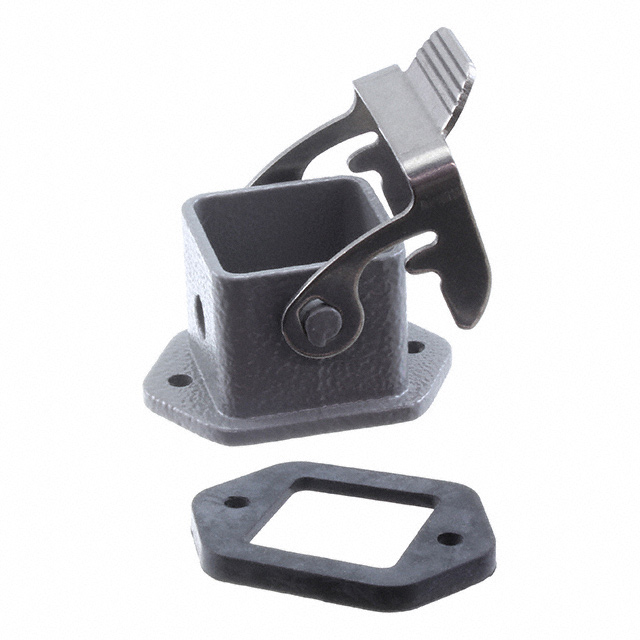

Base - Panel Mount Connector Bottom Entry H3A IP65 - Dust Tight, Water Resistant
