130H405032-E

Active

METZ CONNECT USA Inc.

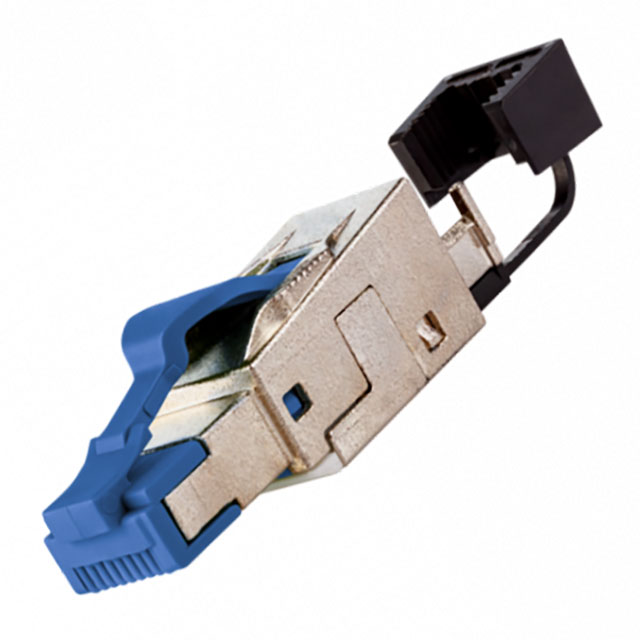

40G RJ45 FIELD PLUG PRO

Search across all available documentation for this part.

Active

METZ CONNECT USA Inc.

40G RJ45 FIELD PLUG PRO

Technical Specifications

Parameters and characteristics for this part

Specification	130H405032-E

Cable Type	Round Cable, Solid, Stranded Wires
Color	Blue
Connector Type	Plug
Contact Finish	Gold
Contact Material	Tin Bronze
Features	Strain Relief, Locking Hook, Housing
Housing Material	Zinc Die Cast
Length [x]	1.96 "
Length [x]	49.78 mm
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Ratings	Cat8.1
Shielding	Shielded
Termination	IDC
Voltage Rating	50 V
Wire Gauge [Max]	27 AWG
Wire Gauge [Min]	22 AWG

Part	Color	Shielding	Housing Material	Voltage Rating	Termination	Number of Positions/Contacts	Connector Type	Length [x]	Length [x]	Features	Contact Finish	Cable Type	Ratings	Wire Gauge [Min]	Wire Gauge [Max]	Contact Material
METZ CONNECT USA Inc. 130H405032-E	Blue	Shielded	Zinc Die Cast	50 V	IDC	8p8c (RJ45 Ethernet)	Plug	1.96 "	49.78 mm	Housing Locking Hook Strain Relief	Gold	Round Cable Solid Stranded Wires	Cat8.1	22 AWG	27 AWG	Tin Bronze

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Plug Modular Connector 8p8c (RJ45, Ethernet) Position Shielded Cat8.1 IDC
