WS8M33R0J

Active

Bourns Inc.

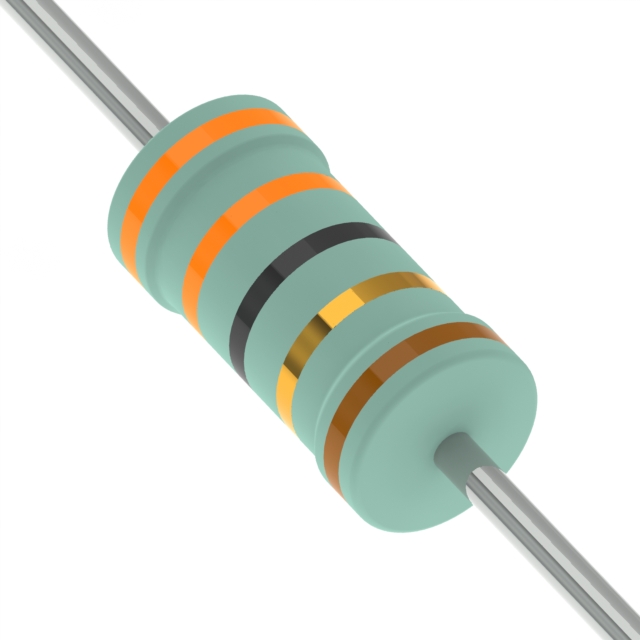

RES 33 OHM 5% 8W AXIAL

Search across all available documentation for this part.

Active

Bourns Inc.

RES 33 OHM 5% 8W AXIAL

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	WS8M33R0J	WS8M Series

Composition	Wirewound	Wirewound
Features	Pulse Withstanding, Flame Retardant Coating, Safety	Pulse Withstanding, Flame Retardant Coating, Safety
Number of Terminations	2	2
Operating Temperature [Max]	200 °C	200 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	Axial	Axial
Power (Watts)	8 W	8 W
Resistance	33 Ohms	20 - 3300 Ohms
Size / Dimension [diameter]	0.335 in, 8.5 mm	0.335 - 8.5 in
Size / Dimension [x]	29.5 mm, 1.161 inches	1.161 - 29.5 mm
Supplier Device Package	Axial	Axial
Temperature Coefficient	200 ppm/°C	200 ppm/°C
Tolerance	5 %	5 %

RES 33 OHM 5% 8W AXIAL

Part	Temperature Coefficient	Features	Number of Terminations	Resistance	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Supplier Device Package	Composition	Size / Dimension [x]	Size / Dimension [diameter]	Tolerance	Power (Watts)
Bourns Inc. WS8M33R0J	200 ppm/°C	Flame Retardant Coating, Pulse Withstanding, Safety	2	33 Ohms	-55 °C	200 °C	Axial	Axial	Wirewound	1.161 inches, 29.5 mm	0.335 in, 8.5 mm	5 %	8 W
Bourns Inc. WS8M3301J	200 ppm/°C	Flame Retardant Coating, Pulse Withstanding, Safety	2	3300 Ohms	-55 °C	200 °C	Axial	Axial	Wirewound	1.161 inches, 29.5 mm	0.335 in, 8.5 mm	5 %	8 W
Bourns Inc. WS8M20R0J	200 ppm/°C	Flame Retardant Coating, Pulse Withstanding, Safety	2	20 Ohms	-55 °C	200 °C	Axial	Axial	Wirewound	1.161 inches, 29.5 mm	0.335 in, 8.5 mm	5 %	8 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

33 Ohms ±5% 8W Through Hole Resistor Axial Flame Retardant Coating, Pulse Withstanding, Safety Wirewound

Technical documentation and resources
