9L28020 008H100

Active

Belden Inc.

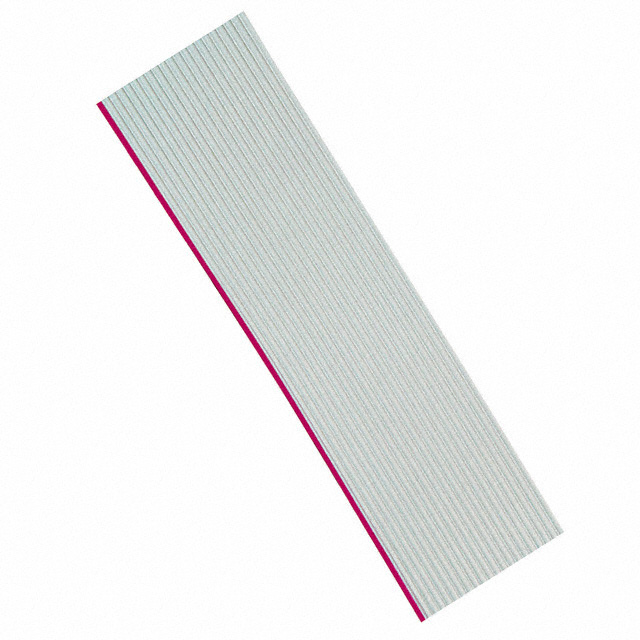

RIBBON CABLE, FLAT, UNSHIELDED, 20 CONDUCTOR, 28 AWG, 100 FT, 30.48 M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

9L28020 008H100

Active

Belden Inc.

RIBBON CABLE, FLAT, UNSHIELDED, 20 CONDUCTOR, 28 AWG, 100 FT, 30.48 M

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9L28020 008H100

Cable Type	Flat Cable
Conductor Material	Copper
Conductor Strand [custom]	7
Conductor Strand [custom]	36 AWG
Current Rating (Amps)	1 A
First Conductor Mark	Red
Insulation Resistance	10 GOhm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length [x]	100 ft
Length [x]	30.48 m
Number of Conductors	20
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Ribbon Thickness	0.89 mm
Ribbon Thickness	0.035 in
Ribbon Width	1 in
Ribbon Width	25.4 mm
Shielding	Unshielded
Voltage	300 V
Wire Gauge	28 AWG

9L28020 Series

Part	Shielding	Current Rating (Amps)	Insulation Resistance	First Conductor Mark	Voltage	Pitch [x]	Pitch [x]	Wire Gauge	Ribbon Thickness	Ribbon Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Jacket Color	Jacket (Insulation) Material	Length [x]	Length [x]	Conductor Material	Number of Conductors	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Ribbon Width	Ribbon Width
Belden Inc. 9L28020 008H100	Unshielded	1 A	10 GOhm	Red	300 V	0.05 in	1.27 mm	28 AWG	0.89 mm	0.035 in	-40 °C	105 ░C	Gray	Poly-Vinyl Chloride (PVC)	100 ft	30.48 m	Copper	20	Flat Cable	7	36 AWG	1 in	25.4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 468.21
		2	$ 424.05
		3	$ 400.23
		5	$ 372.20
		7	$ 354.88
		10	$ 337.48
		25	$ 296.92
Newark	Spool of 100	1	$ 352.45
		5	$ 338.82
		10	$ 327.13

Description

General part information

9L28020 Series

The 9L28020 008H100 is a 20-core unshielded flat Ribbon Cable with tinned copper conductor and a PVC insulator. It is designed for general-purpose electronic interconnect applications. It provides reliable mass-termination to standard IDC connectors.
