Technical Specifications
Parameters and characteristics for this part
| Specification | FM25V05-GTR |
|---|---|
| Clock Frequency | 40 MHz |
| Memory Format | FRAM |
| Memory Interface | SPI |
| Memory Organization | 64 K |
| Memory Size | 64 kB |
| Memory Type | Non-Volatile |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 3.9 mm |
| Package / Case | 8-SOIC |
| Supplier Device Package | 8-SOIC |
| Technology | FRAM (Ferroelectric RAM) |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
FM25V05 Series
IC FRAM 512KBIT SPI 40MHZ 8SOIC
| Part | Memory Interface | Memory Format | Technology | Memory Size | Memory Organization | Package / Case | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Clock Frequency | Supplier Device Package | Memory Type | Voltage - Supply [Max] | Voltage - Supply [Min] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SPI | FRAM | FRAM (Ferroelectric RAM) | 64 kB | 64 K | 3.9 mm | 8-SOIC | 85 °C | -40 °C | 40 MHz | 8-SOIC | Non-Volatile | 3.6 V | 2 V | Surface Mount |
Description
General part information
FM25V05 Series

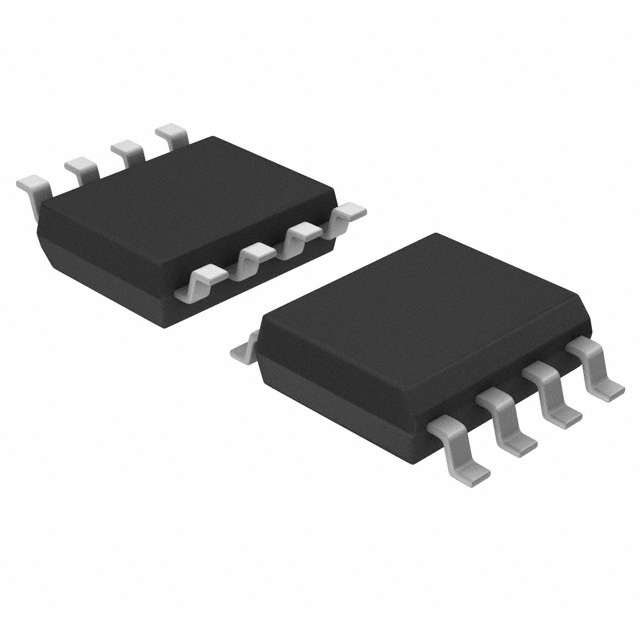

FRAM (Ferroelectric RAM) Memory IC 512Kbit SPI 40 MHz 8-SOIC
