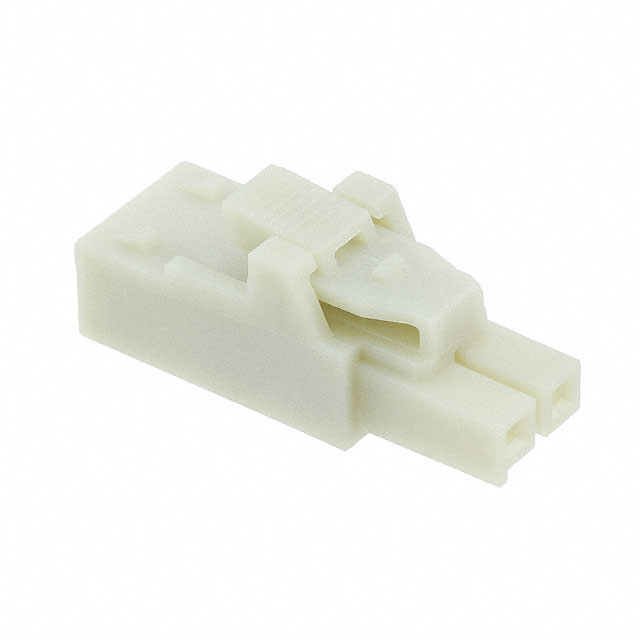

Specification	1722562102

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	Terminal Position Lock (TPA) Notched
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	2
Number of Rows	1
Pitch	0.138 in

172256 Series

Ultra-Fit Tangless Receptacle Housing, 3.50mm Pitch, Single Row, 8 Circuits, Black, Glow-Wire Capable

Part	Note	Fastening Type	Contact Termination	Features	Number of Rows	Color	Number of Positions	Mounting Type	Pitch	Contact Type	Connector Type	Operating Temperature (Min)	Operating Temperature (Max)	Insulation Material
Molex 1722562105	Contacts Not Included	Latch Lock	Crimp	Terminal Position Lock (TPA) Notched	1	Natural	5	Free Hanging (In-Line)	0.138 in	Female Socket	Receptacle
Molex 1722563105	Contacts Not Included	Latch Lock	Crimp	Glow Wire Compliant Terminal Position Lock (TPA)	1	Black	5	Free Hanging (In-Line)	0.138 in	Female Socket	Receptacle	-40 °C	105 °C	Nylon Polyamide (PA)
Molex 1722562006	Contacts Not Included	Latch Lock	Crimp		1	Natural	6	Free Hanging (In-Line)	0.138 in	Female Socket	Receptacle
Molex 1722564103	Contacts Not Included	Latch Lock	Crimp	Glow Wire Compliant Terminal Position Lock (TPA)	1	Natural	3	Free Hanging (In-Line)	0.138 in	Female Socket	Receptacle	-40 °C	105 °C	Nylon Polyamide (PA)
Molex 1722563108		Latch Lock	Crimp	Glow Wire Compliant Terminal Position Lock (TPA)	1	Black	8	Free Hanging (In-Line)	0.138 in	Female Socket	Receptacle	-40 °C	105 °C	Nylon Polyamide (PA)
Molex 1722561006	Contacts Not Included	Latch Lock	Crimp		1	Black	6	Free Hanging (In-Line)	0.138 in	Female Socket	Receptacle
Molex 1722564108	Contacts Not Included	Latch Lock	Crimp	Glow Wire Compliant Terminal Position Lock (TPA)	1	Natural	8	Free Hanging (In-Line)	0.138 in	Female Socket	Receptacle	-40 °C	105 °C	Nylon Polyamide (PA)
Molex 1722563103		Latch Lock	Crimp	Glow Wire Compliant Terminal Position Lock (TPA)	1	Black	3	Free Hanging (In-Line)	0.138 in	Female Socket	Receptacle	-40 °C	105 °C	Nylon Polyamide (PA)
Molex 1722562004	Contacts Not Included	Latch Lock	Crimp		1	Natural	4	Free Hanging (In-Line)	0.138 in	Female Socket	Receptacle
Molex 1722561003	Contacts Not Included	Latch Lock	Crimp		1	Black	3	Free Hanging (In-Line)	0.138 in	Female Socket	Receptacle
