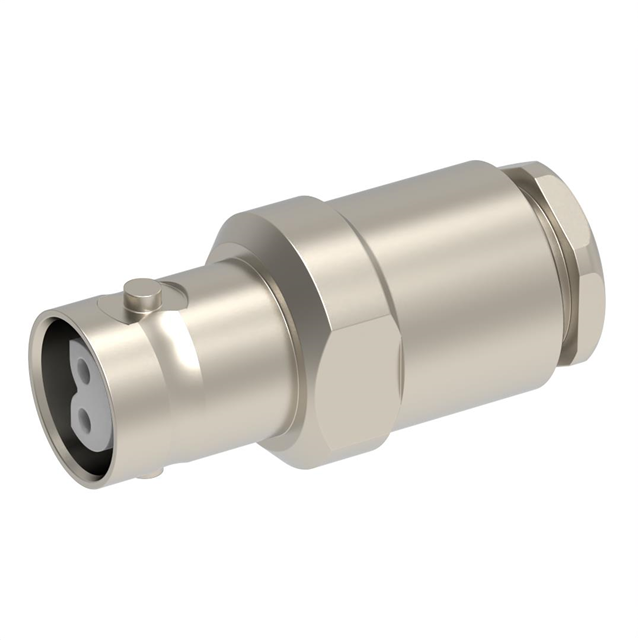

R605206000
ActiveRadiall USA, Inc.
BR2 / STRAIGHT JACK CLAMP TYPE F
Deep-Dive with AI
Search across all available documentation for this part.
R605206000
ActiveRadiall USA, Inc.
BR2 / STRAIGHT JACK CLAMP TYPE F
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R605206000 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | Twinaxial 6 |
| Connector Style | BR2 |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder |
| Dielectric Material | Polyamide (PA), Nylon, Diallyl Phthalate (DAP) |
| Fastening Type | Bayonet Lock |
| Frequency - Max [Max] | 500 MHz |
| Housing Color | Silver |
| Impedance | 80 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Shield Termination | Clamp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 205.03 | |
Description
General part information
R605206000
BR2 Connector Jack, Female Socket 80 Ohms Free Hanging (In-Line) Solder
