8804
ActiveKeystone Electronics

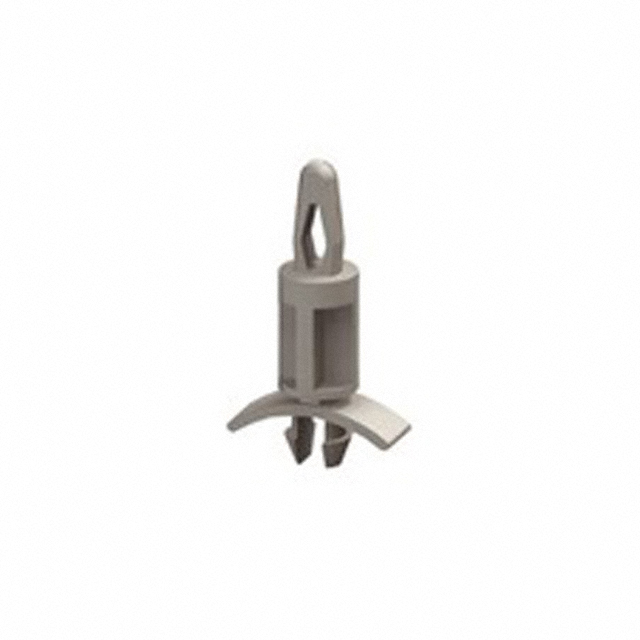

BRD SPT SNAP FIT/LOCK NYLON 5/8"
8804
ActiveKeystone Electronics
BRD SPT SNAP FIT/LOCK NYLON 5/8"
Description
General part information
8804
Board Support Snap Fit / Snap Lock Nylon 0.625" (15.88mm) 5/8"
Technical Specifications
Parameters and characteristics for this part
| Specification | 8804 |
|---|---|
| Between Board Height | 0.625 in |
| Features | Locking, Winged, Tension Fit |
| Holding Type | Snap Fit |
| Length - Overall | 1.192 in |
| Material | Nylon |
| Mounting Hole Diameter | 0.187 in |
| Mounting Panel Thickness | 0.062 in |
| Mounting Type | Snap Lock |
| Support Hole Diameter | 0.156 in |
| Support Hole Diameter (Alternate) | 5/32" |
| Support Panel Thickness | 0.062 in |
| Support Panel Thickness (Fraction) | 1/16" |
