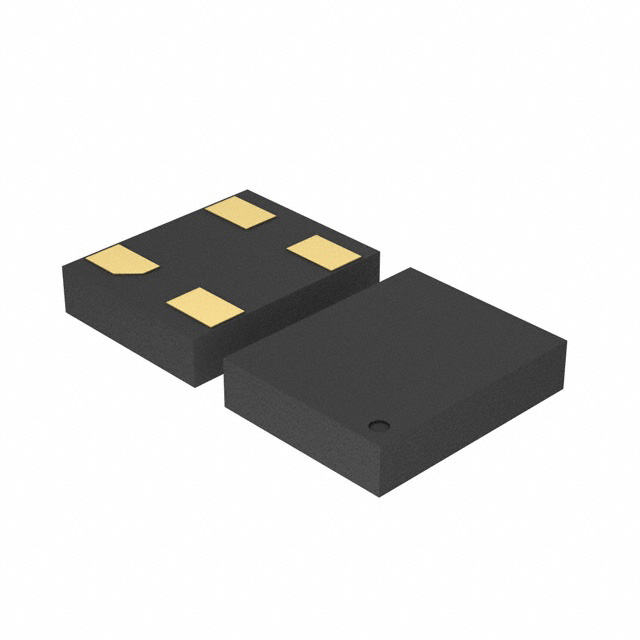

500SA00000M000AC0R

Obsolete

Skyworks Solutions Inc.

OSC PROG CMOS 3.3V SMD

Search across all available documentation for this part.

Obsolete

Skyworks Solutions Inc.

OSC PROG CMOS 3.3V SMD

Technical Specifications

Parameters and characteristics for this part

Specification	500SA00000M000AC0R

Available Frequency Range [Max]	200 MHz
Available Frequency Range [Min]	900 kHz
Base Resonator	Silicon
Current - Supply (Disable) (Max)	1.9 mA
Current - Supply (Max) [Max]	24 mA
Height - Seated (Max) [Max] [z]	0.035 "
Height - Seated (Max) [Max] [z]	0.9 mm
Mounting Type	Surface Mount
Output	CMOS
Package / Case	4-SMD, No Lead
Programmable Type	Blank (User Must Program)
Size / Dimension [x]	0.157 "
Size / Dimension [x]	4 mm
Size / Dimension [y]	3.2 mm
Size / Dimension [y]	0.126 "
Type	XO (Standard)
Voltage - Supply	3.3 V

Part	Package / Case	Base Resonator	Mounting Type	Output	Voltage - Supply	Programmable Type	Current - Supply (Disable) (Max)	Available Frequency Range [Max]	Available Frequency Range [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Type	Current - Supply (Max) [Max]
Skyworks Solutions Inc. 500SA00000M000AC0R	4-SMD No Lead	Silicon	Surface Mount	CMOS	3.3 V	Blank (User Must Program)	1.9 mA	200 MHz	900 kHz	0.035 "	0.9 mm	3.2 mm	0.157 "	0.126 "	4 mm	XO (Standard)	24 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

XO (Standard) CMOS 900 kHz ~ 200 MHz Programmable Oscillator 3.3V Enable/Disable, Standby 4-SMD, No Lead
