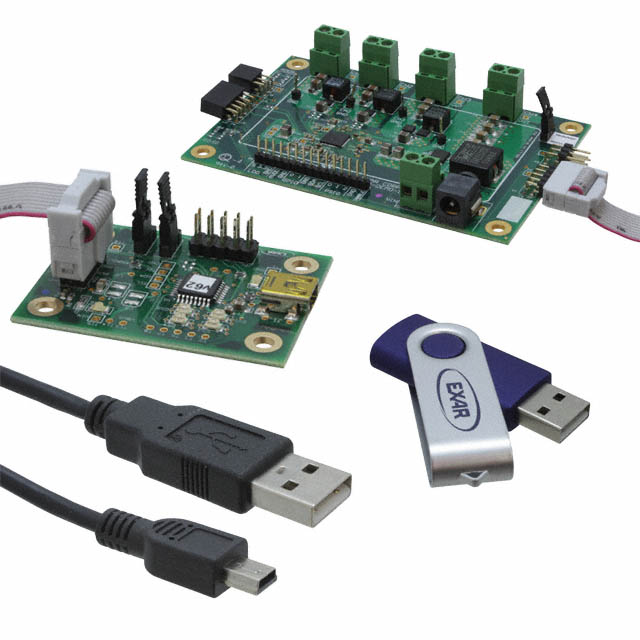

XRP7724EVB-DEMO-2P-KIT
ObsoleteMaxLinear, Inc.
KIT EVAL BOARD DEMO XRP7724
XRP7724EVB-DEMO-2P-KIT
ObsoleteMaxLinear, Inc.
KIT EVAL BOARD DEMO XRP7724
Description
General part information
XRP7724EVB-DEMO-2P-KIT
XRP7724 - DC/DC, Step Up or Down with LDO 4, Non-Isolated Outputs Evaluation Board
Technical Specifications
Parameters and characteristics for this part
| Specification | XRP7724EVB-DEMO-2P-KIT |
|---|---|
| Board Type | Fully Populated |
| Contents | Board, Accessories |
| Current - Output (Value 1) | 10 A |
| Current - Output (Value 2) | 5 A |
| Current - Output (Value 3) | 3 A |
| Main Purpose | DC/DC, Step Up or Down with LDO |
| Non-Isolated Output Count | 4 |
| Output Type | Non-Isolated |
| Regulator Topology | Buck |
| Supplied Contents | Board(s), Accessories |
| Total Output Count | 4 count |
| Utilized IC / Part | XRP7724 |
| Voltage - Input (Maximum) | 25 V |
| Voltage - Input (Minimum) | 5.5 V |
| Voltage - Output | 3.3V, 1V, 1.5V, 2.5V |
| Voltage - Output (1) | 1 V |
| Voltage - Output (2) | 1.5 V |
| Voltage - Output (3) | 2.5 V |
| Voltage - Output (4) | 3.3 V |
