Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA1352Z-60 |
|---|---|
| 1st Connector | Fakra Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | Fakra Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | RG, 174 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 1 GHz |
| Length | 1524 mm |
| Length (ft) | 5 ft |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | Fakra |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | Updated |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 71.34 | <6d |
CAD
3D models and CAD resources for this part
Description
General part information
FMCA1352Z-60

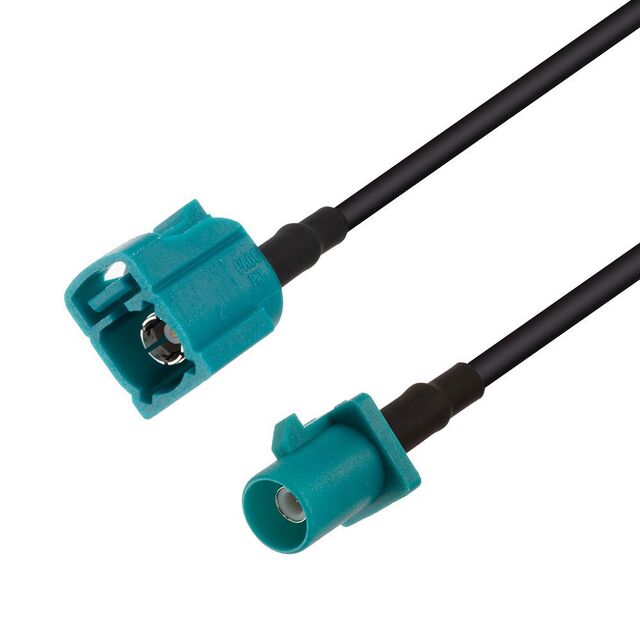

Cable Assembly Coaxial Fakra to Fakra RG-174 60.0" (1.5m) 5.0'
Documents
Technical documentation and resources
