46206LFRX

Active

Switchcraft Inc.

SWITCH SLIDE DPDT 3A 125V

Search across all available documentation for this part.

Active

Switchcraft Inc.

SWITCH SLIDE DPDT 3A 125V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	46206LFRX	46206L Series

Actuator Length	Flush	Flush
Actuator Length	-	8.74 mm
Actuator Material	Thermoplastic	Thermoplastic
Actuator Type	Screwdriver Slot	Screwdriver Slot, Standard
Circuit	DPDT	DPDT
Contact Material	Copper Alloy	Copper Alloy
Contact Timing	Non-Shorting	Non-Shorting
Current Rating (Amps)	500 mA, 3 A	3 - 500 mA
Features [Max]	230 V	230 V
Features [Min]	115 V	115 V
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 C	-20 C
Switch Function	On-On (Line Voltage Selector)	On-On (Line Voltage Selector), On-On
Switch Travel	4.78 mm	4.78 mm
Termination Style	Solder Lug	Solder Lug
Voltage Rating - AC	125 V	125 V
Voltage Rating - DC	125 VDC	125 VDC

SWITCH SLIDE DPDT 3A 125V

Part	Actuator Material	Voltage Rating - AC	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Actuator Length	Current Rating (Amps)	Actuator Type	Switch Travel	Features [Max]	Features [Min]	Circuit	Voltage Rating - DC	Switch Function	Contact Timing	Contact Material	Actuator Length [x]
Switchcraft Inc. 46206LFRX	Thermoplastic	125 V	-20 C	70 °C	Solder Lug	Flush	3 A, 500 mA	Screwdriver Slot	4.78 mm	230 V	115 V	DPDT	125 VDC	On-On (Line Voltage Selector)	Non-Shorting	Copper Alloy
Switchcraft Inc. 46206LRX	Thermoplastic	125 V	-20 C	70 °C	Solder Lug		3 A, 500 mA	Standard	4.78 mm			DPDT	125 VDC	On-On	Non-Shorting	Copper Alloy	8.74 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

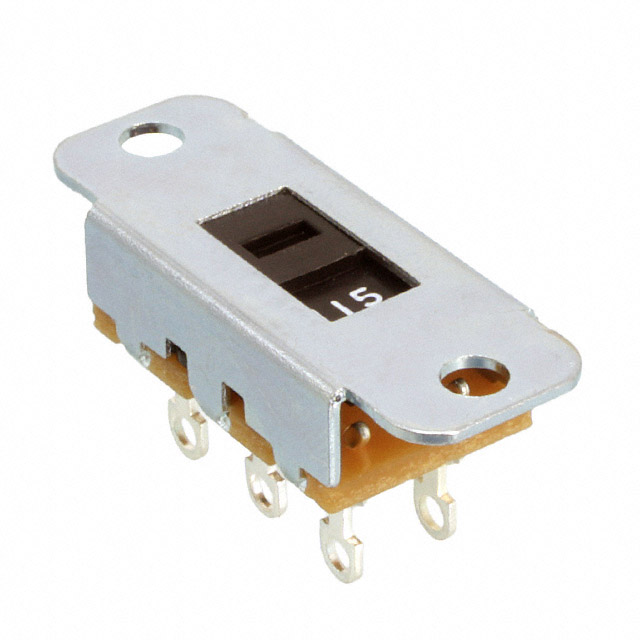

Slide Switch DPDT Panel Mount
