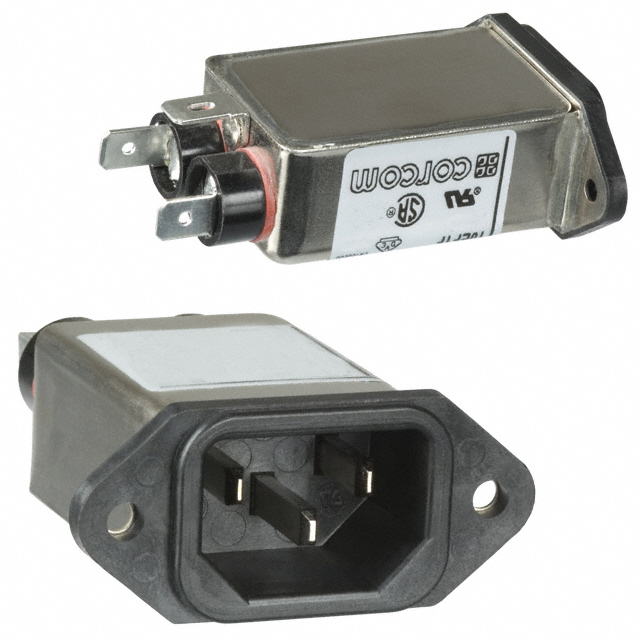

15EF1F

Active

TE Connectivity Corcom Filters

PWR ENT RCPT IEC320-C14 PANEL QC

Search across all available documentation for this part.

Active

TE Connectivity Corcom Filters

PWR ENT RCPT IEC320-C14 PANEL QC

Technical Specifications

Parameters and characteristics for this part

Specification	15EF1F

Accomodates a Fuse	False
Approval Agency	UL, VDE, CSA
Connector Style	IEC 320-C14
Connector Type	Male Blades, Receptacle
Current Rating - Appliance Inlet	15 A
Current Rating - Filter	15 A
Features	Front or Rear Side Mount
Filter Type	Filtered (EMI, RFI) - Commercial
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions	Variable Size
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet [Max]	250 VAC
Voltage Rating - Appliance Inlet [Min]	120 VAC

PWR ENT RCPT IEC320-C14 PANEL QC

Part	Accomodates a Fuse	Voltage Rating - Appliance Inlet [Max]	Voltage Rating - Appliance Inlet [Min]	Panel Cutout Dimensions	Termination	Termination	Termination	Connector Type	Current Rating - Filter	Current Rating - Appliance Inlet	Filter Type	Connector Style	Features	Mounting Type	Approval Agency
TE Connectivity Corcom Filters 15EF1F		250 VAC	120 VAC	Variable Size	0.25 in	6.3 mm	Quick Connect	Male Blades, Receptacle	15 A	15 A	Filtered (EMI, RFI) - Commercial	IEC 320-C14	Front or Rear Side Mount	Flange, Panel Mount	CSA, UL, VDE
