MSKD60-08
ObsoleteMicrosemi Corporation

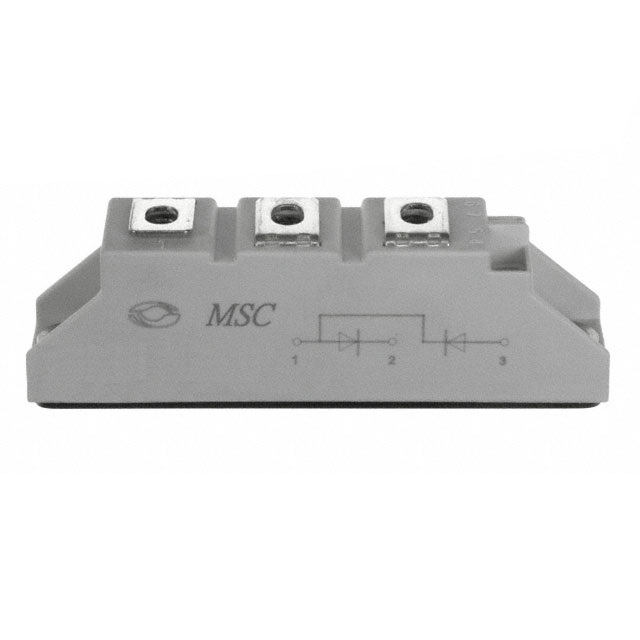

DIODE MODULE GP 800V 60A D1
MSKD60-08
ObsoleteMicrosemi Corporation
DIODE MODULE GP 800V 60A D1
Description
General part information
MSKD60-08
Diode Array 1 Pair Common Cathode 800 V 60A Chassis Mount D1
Technical Specifications
Parameters and characteristics for this part
| Specification | MSKD60-08 |
|---|---|
| Current - Average Rectified (Io) (per Diode) | 60 A |
| Current - Reverse Leakage | 5 mA |
| Diode Configuration | Common Cathode |
| Diode Pair Count | 1 pair |
| Mounting Type | Chassis Mount |
| Package / Case | D1 |
| Package Name | D1 |
| Speed | Standard Recovery |
| Speed - Fast Recovery (Minimum) | 200 mA, 500 ns |
| Speed - Recovery Current | 200 mA, 200 mA |
| Speed - Recovery Time | 500 ns |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 800 V |
| Voltage - Forward (Vf) (Max) | 1.3 V |
