9083-1-00-15-00-00-38-0
ActiveMill-Max Manufacturing Corp.

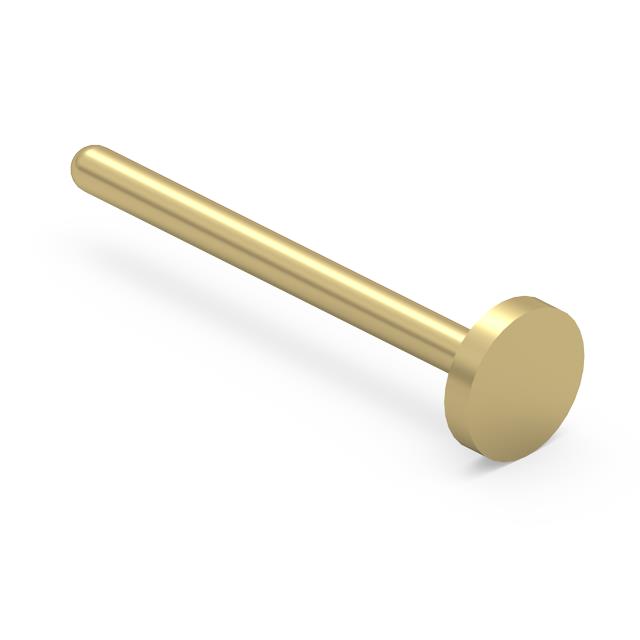

NAIL HEAD PIN
9083-1-00-15-00-00-38-0
ActiveMill-Max Manufacturing Corp.
NAIL HEAD PIN
Description
General part information
9083-1-00-15-00-00-38-0
PC Pin Terminal Connector Through Hole Gold 0.012" (0.30mm) Dia
Technical Specifications
Parameters and characteristics for this part
| Specification | 9083-1-00-15-00-00-38-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Ąin |
| Contact Material | Brass Alloy |
| Flange Diameter | 0.04 in |
| Insulation | Non-Insulated |
| Length - Above Flange | 0.11 in |
| Length - Overall | 0.118 in |
| Mounting Hole Diameter | 0.016 in |
| Mounting Type | Through Hole |
| Pin Size - Above Flange (Diameter) | 0.012 in |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
