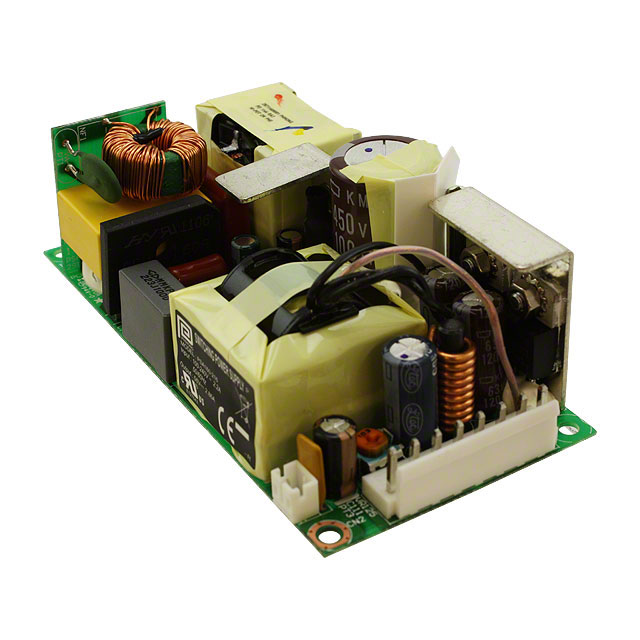

PSA160-218
ObsoletePhihong USA
AC/DC CONVERTER 48V 160W
PSA160-218
ObsoletePhihong USA
AC/DC CONVERTER 48V 160W
Description
General part information
PSA160-218
Open Frame AC DC Converters 1 Output 48V 90 ~ 264 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | PSA160-218 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cURus, CE |
| Current - Output 1 | 3.34 A |
| Efficiency | 90 % |
| Features | Universal Input |
| Minimum Load Required | Yes |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Power (Watts) | 160 W |
| Size / Dimension Height | 1.34 in |
| Size / Dimension Length | 4 in |
| Size / Dimension Width | 2 in |
| Type | Open Frame |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
