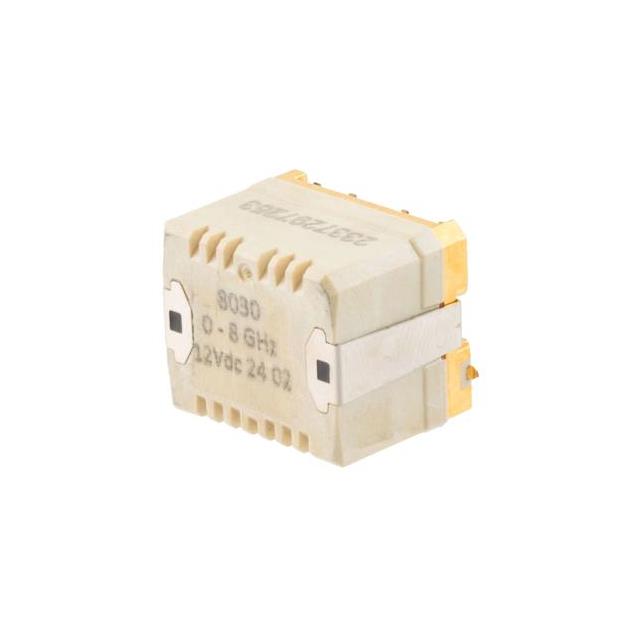

PE71S8030
ActivePasternack
SPDT ELECTROMECHANICAL RELAY FAI
PE71S8030
ActivePasternack
SPDT ELECTROMECHANICAL RELAY FAI
Description
General part information
PE71S8030
SPDT ELECTROMECHANICAL RELAY FAI
Technical Specifications
Parameters and characteristics for this part
| Specification | PE71S8030 |
|---|---|
| Circuit | SPDT |
| Frequency Range (Max) | 8 GHz |
| Frequency Range (Min) | 0 Hz |
| Impedance | 50 Ohm |
| Insertion Loss (Max) | 0.5 dB |
| Isolation (Min) | 40 dB |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| RF Type | General Purpose |
| Test Frequency | 8 GHz |
| Topology | Absorptive |
| Voltage - Supply (Maximum) | 13 V |
| Voltage - Supply (Minimum) | 10.5 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
