RSB3-200M-S
ActiveLoadstar Sensors

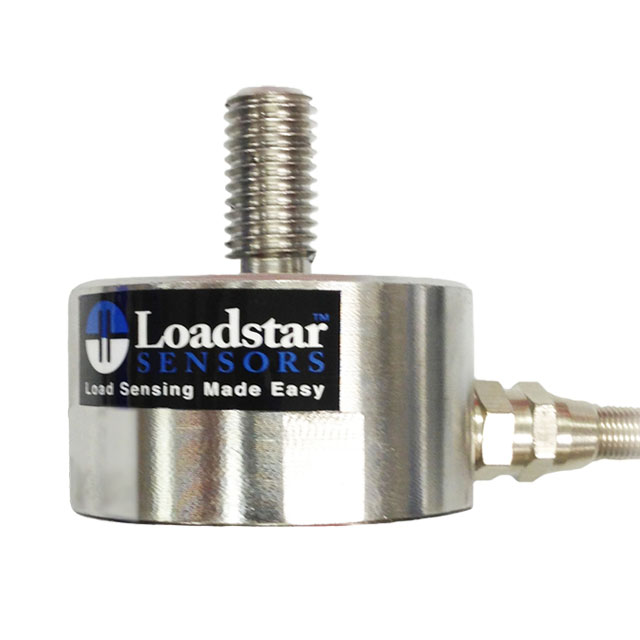

200 KGF DIAPHRAGM LOAD CELL
RSB3-200M-S
ActiveLoadstar Sensors
200 KGF DIAPHRAGM LOAD CELL
Description
General part information
RSB3-200M-S
200 KGF DIAPHRAGM LOAD CELL
Technical Specifications
Parameters and characteristics for this part
| Specification | RSB3-200M-S |
|---|---|
| Accuracy | 0.1 % RH |
| Actuator Diameter | 12 mm |
| Actuator Pitch | 1.75 mm |
| Actuator Style | Internal Thread |
| Actuator Type | Button with Threaded Stud |
| Compensated Temperature (Max) | 40 °C |
| Compensated Temperature (Min) | -10 °C |
| Includes | Sensor |
| Operating Force | 200 kgf |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Output | Analog Voltage mV/V (millivolts) |
| Sensor Type | Load Cell |
| Voltage - Supply (Maximum) | 10 V |
| Voltage - Supply (Minimum) | 5 V |
