826468-4

Active

TE Connectivity AMP Connectors

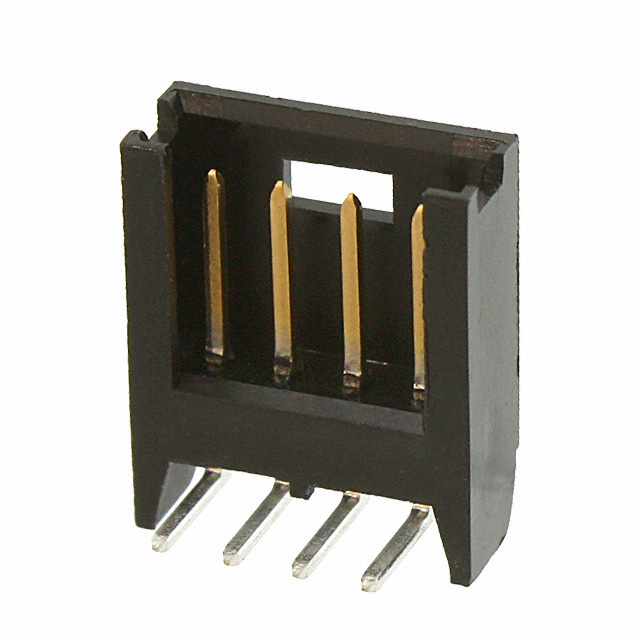

CONN HEADER R/A 4POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

826468-4

Active

TE Connectivity AMP Connectors

CONN HEADER R/A 4POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	826468-4	826468 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	0.099 µm	0.099 µm
Contact Finish Thickness - Mating	3.9 µin	3.9 µin
Contact Finish Thickness - Post	3 µm	3 µm
Contact Finish Thickness - Post	118.1 µin	118.1 µin
Contact Length - Post	3.2 mm	3.2 mm
Contact Length - Post [x]	0.126 in	0.126 in
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Fastening Type	Latch Holder	Latch Holder
Insulation Color	Black	Black
Insulation Height	6 mm	6 mm
Insulation Height	0.236 in	0.236 in
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	4	4 - 8
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Shrouding	Shrouded - 2 Wall	Shrouded - 2 Wall
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

826468 Series

CONN HEADER R/A 4POS 2.54MM

Part	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Insulation Color	Contact Length - Post	Contact Length - Post [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Material Flammability Rating	Style	Contact Shape	Number of Rows	Insulation Material	Fastening Type	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Number of Positions	Contact Type	Number of Positions Loaded	Insulation Height	Insulation Height	Connector Type	Contact Finish - Mating	Shrouding
TE Connectivity AMP Connectors 826468-4	105 ░C	-55 °C	Phosphor Bronze	Black	3.2 mm	0.126 in	3 µm	118.1 µin	0.1 in	2.54 mm	Tin	UL94 V-0	Board to Board, Cable	Square	1	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled	Latch Holder	Through Hole, Right Angle	0.099 µm	3.9 µin	Solder	4	Male Pin	All	6 mm	0.236 in	Header	Gold	Shrouded - 2 Wall
TE Connectivity AMP Connectors 826468-5	105 ░C	-55 °C	Phosphor Bronze	Black	3.2 mm	0.126 in	3 µm	118.1 µin	0.1 in	2.54 mm	Tin	UL94 V-0	Board to Board, Cable	Square	1	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled	Latch Holder	Through Hole, Right Angle	0.099 µm	3.9 µin	Solder		Male Pin	All	6 mm	0.236 in	Header	Gold	Shrouded - 2 Wall
TE Connectivity AMP Connectors 826468-8	105 ░C	-55 °C	Phosphor Bronze	Black	3.2 mm	0.126 in	3 µm	118.1 µin	0.1 in	2.54 mm	Tin	UL94 V-0	Board to Board, Cable	Square	1	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled	Latch Holder	Through Hole, Right Angle	0.099 µm	3.9 µin	Solder	8	Male Pin	All	6 mm	0.236 in	Header	Gold	Shrouded - 2 Wall
TE Connectivity AMP Connectors 826468-6	105 ░C	-55 °C	Phosphor Bronze	Black	3.2 mm	0.126 in	3 µm	118.1 µin	0.1 in	2.54 mm	Tin	UL94 V-0	Board to Board, Cable	Square	1	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled	Latch Holder	Through Hole, Right Angle	0.099 µm	3.9 µin	Solder	6	Male Pin	All	6 mm	0.236 in	Header	Gold	Shrouded - 2 Wall

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.79
		10	$ 1.64
		300	$ 1.44
		600	$ 1.31
		1200	$ 1.17
		5100	$ 1.05

Description

General part information

826468 Series

Connector Header Through Hole, Right Angle 4 position 0.100" (2.54mm)
