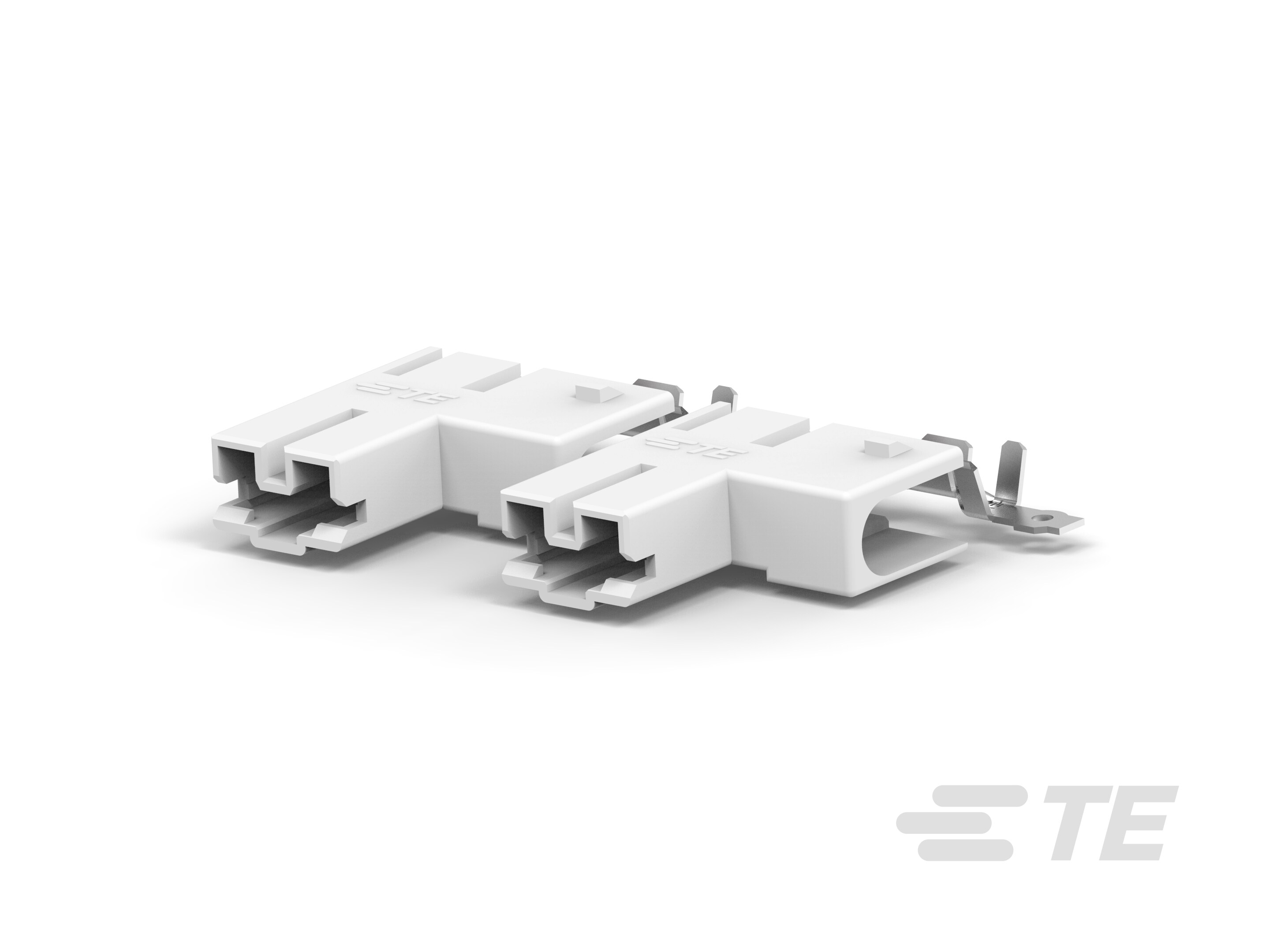

POD-LOK 250 FLAG AWG 16-14 PTPBR GF-2299280-2

2299280-3

Active
TE Connectivity AMP Connectors

POD-LOK 250 FLAG AWG 14-12 TPBR GF

Find alt
POD-LOK 250 FLAG AWG 16-14 PTPBR GF-2299280-2

2299280-3

Active
TE Connectivity AMP Connectors

POD-LOK 250 FLAG AWG 14-12 TPBR GF

Find alt

Description

General part information

POD-LOK 250 Series

Quick Disconnect Receptacle, 12 – 14 AWG, 2 – 3.31 mm² Wire, 6.35 mm [.25 in] Tab Width, Flag, Brass, Tin Plating, Strip/Reel, F-Crimp, POD-LOK 250

Technical Specifications

Parameters and characteristics for this part

Specification2299280-3
Contact FinishTin
Contact MaterialBrass
GenderFemale
InsulationMating End Insulated
Insulation Diameter (Max)0.17 in
Insulation Diameter (Min)0.134 in
Mounting TypeRight Angle, Free Hanging (In-Line)
Tab Thickness0.031 in
Tab Width0.25 in
Terminal Angle90 °
Terminal TypeFlag, Angled
TerminationCrimp
Wire Gauge (AWG) (Max)14 AWG
Wire Gauge (AWG) (Min)12 AWG
