Description
General part information

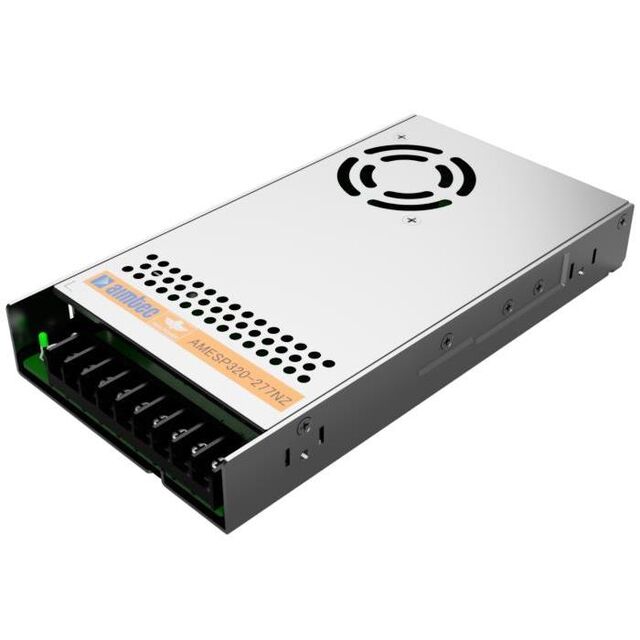

AMESP320-48S277NZ-Q
Enclosed, Conformal Coated AC DC Converters 1 Output 48V 85 ~ 264 VAC, 120 ~ 430 VDC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | AMESP320-48S277NZ-Q |
|---|---|
| Applications | ITE (Commercial), Household Appliances |
| Current - Output 1 | 6.7 A |
| Efficiency | 89 % |
| Features | PFC, DC Input Capable, Adjustable Output, Universal Input |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -30 °C |
| Power (Watts) | 322 W |
| Size / Dimension Height | 1.18 in |
| Size / Dimension Length | 8.46 in |
| Size / Dimension Width | 4.53 in |
| Standard Number | 60335-1, 62368-1 |
| Type | Enclosed, Conformal Coated |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 85 VAC |
| Voltage - Input (DC) Maximum | 430 V |
| Voltage - Input (DC) Minimum | 120 V |
| Voltage - Isolation | 4000 Vpk |
| Voltage - Output 1 | 48 V |
