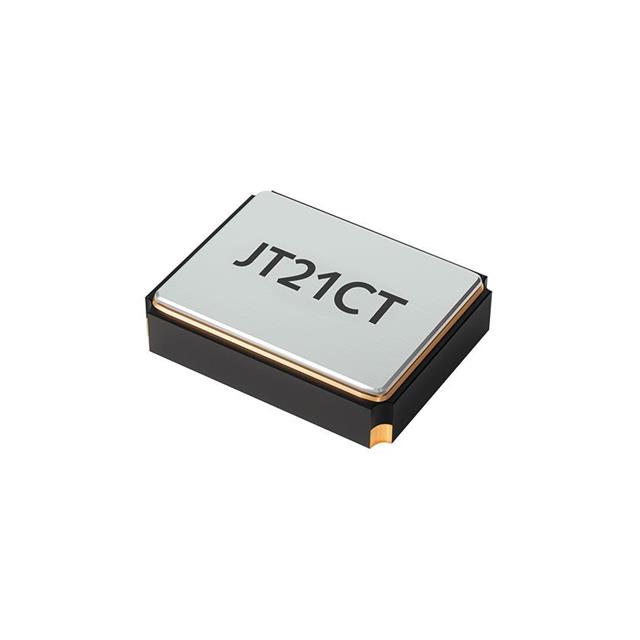

O 50,0-JT21CT-A-P-3,3-LF
ActiveJauch Quartz
OSC TCXO 50MHZ 3.3V HCMOS SMD
O 50,0-JT21CT-A-P-3,3-LF
ActiveJauch Quartz
OSC TCXO 50MHZ 3.3V HCMOS SMD
Description
General part information
O 50,0-JT21CT-A-P-3,3-LF
50 MHz TCXO HCMOS Oscillator 3.3V Standby (Power Down) 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | O 50,0-JT21CT-A-P-3,3-LF |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Disable) (Max) | 10 µA |
| Current - Supply (Max) | 7 mA |
| Frequency | 50 MHz |
| Frequency Stability | 2.5 ppm |
| Function | Standby (Power Down) |
| Height - Seated (Max) | 0.031 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Output | HCMOS |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension Length | 0.079 in |
| Size / Dimension Width | 0.063 in |
| Type | TCXO |
| Voltage - Supply | 3.3 V |
