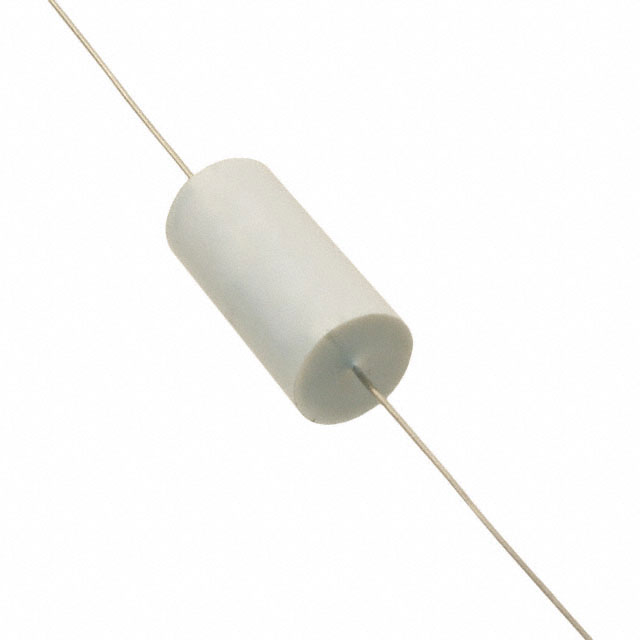

935C2W5K-F
ActiveCornell Dubilier Knowles
CAP FILM 5UF 10% 200VDC AXIAL
935C2W5K-F
ActiveCornell Dubilier Knowles
CAP FILM 5UF 10% 200VDC AXIAL
Description
General part information
935C2W5K-F
5 µF Film Capacitor 140V 200V Polypropylene (PP), Metallized Axial
Technical Specifications
Parameters and characteristics for this part
| Specification | 935C2W5K-F |
|---|---|
| Applications | Switching, High Frequency |
| Capacitance | 5 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | 11 mOhm |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Size / Dimension Diameter | 0.768 in |
| Size / Dimension Length | 1.748 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - AC | 140 V |
| Voltage Rating - DC | 200 V |
