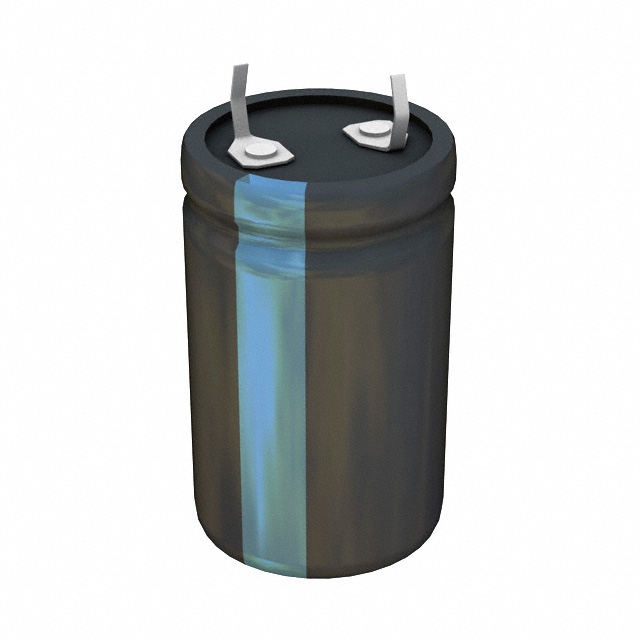

381LX102M100H032
ObsoleteCornell Dubilier Knowles
CAP ALUM 1000UF 20% 100V SNAP TH
381LX102M100H032
ObsoleteCornell Dubilier Knowles
CAP ALUM 1000UF 20% 100V SNAP TH
Description
General part information
381LX102M100H032
1000 µF 100 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | 381LX102M100H032 |
|---|---|
| Applications | General Purpose |
| Capacitance | 1000 µF |
| Height - Seated (Max) | 1.457 in |
| Lead Spacing | 0.394 in |
| Lifetime | 3000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can - Snap-In, Radial |
| Polarization | Polar |
| Ripple Current | 1.7 A, 2.55 A |
| Size / Dimension Diameter | 0.866 in |
| Tolerance | 20 % |
| Voltage - Rated | 100 VAC/DC |
