17481001
ActiveBopla Enclosures
HSG PPE BLK 4.311"L X 1.890"W
17481001
ActiveBopla Enclosures
HSG PPE BLK 4.311"L X 1.890"W
Description
General part information
17481001

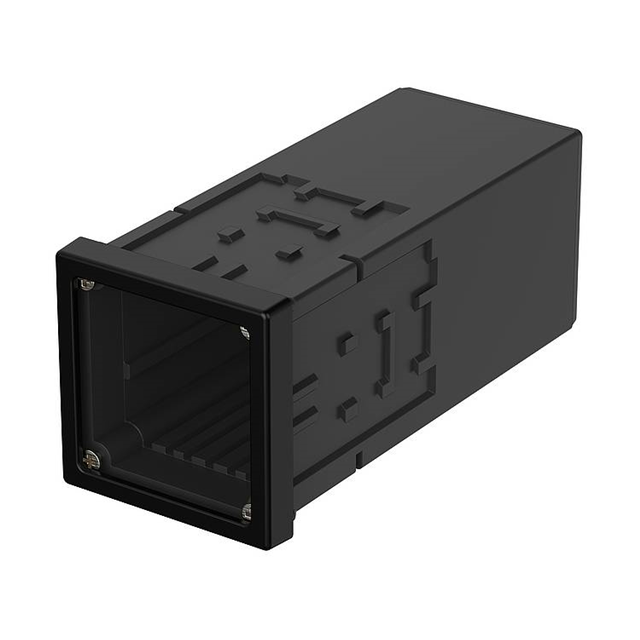

Housing Plastic, PPE Black Open End(s) 4.311" L x 1.890" W (109.50mm x 48.00mm) X 1.890" (48.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 17481001 |
|---|---|
| Area (L x W) | 8.15 in² |
| Color | Black |
| Container Type | Housing |
| Design | Open End(s) |
| Features | Flame Retardant, Card Guides |
| Height | 1.89 in |
| Material | PPE, Plastic |
| Material Flammability Rating | UL94 V-1 |
| Ratings | IP65, IP40 |
| Size / Dimension Length | 4.311 in |
| Size / Dimension Width | 1.89 in |
| Weight | 0.11 lb |
