050AT2503HM
ActiveGowanda Electronics

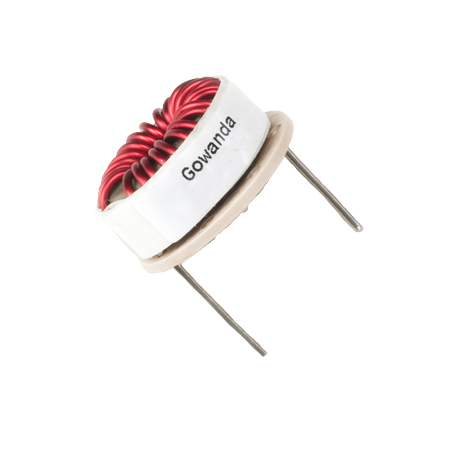

HORIZ STANDOFF TOROIDAL CHOKE
050AT2503HM
ActiveGowanda Electronics
HORIZ STANDOFF TOROIDAL CHOKE
Description
General part information
050AT2503HM
250 µH Shielded Toroidal Inductor 1.84 A 160mOhm Max Radial, Horizontal Cylinder (Open)
Technical Specifications
Parameters and characteristics for this part
| Specification | 050AT2503HM |
|---|---|
| Current - Saturation (Isat) | 1.4 A |
| Current Rating | 1.84 A |
| DC Resistance (DCR) (Max) | 160 mOhm |
| Height - Seated (Max) | 0.42 in |
| Inductance | 250 µH |
| Inductance Frequency - Test | 1 kHz |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial, Horizontal Cylinder (Open) |
| Package Name | Radial |
| Shielding | Shielded |
| Size / Dimension Diameter | 0.66 in |
| Tolerance | 10 % |
| Type | Toroidal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
