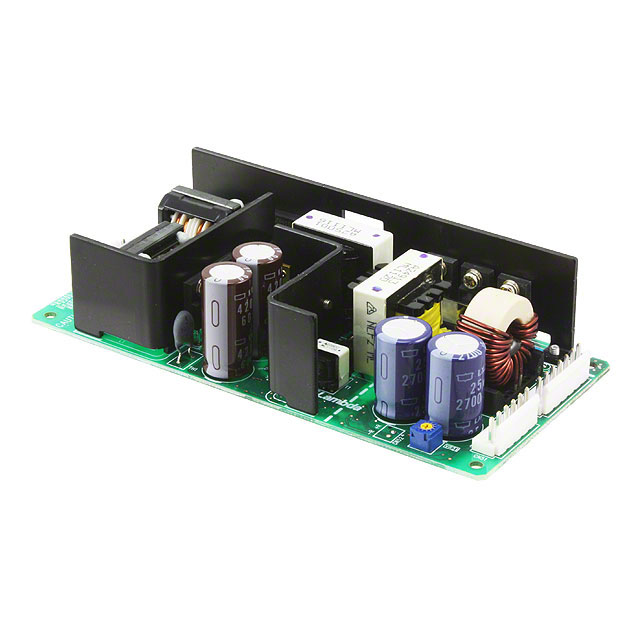

ZWS150BAF-24/A

Active

TDK-LAMBDA

AC/DC ENCLOSED POWER SUPPLY (PSU), 1 OUTPUTS, 150 W, 24 V, 6.3 A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsZWS150BAF/A Spec Datasheet +4

ZWS150BAF-24/A

Active

TDK-LAMBDA

AC/DC ENCLOSED POWER SUPPLY (PSU), 1 OUTPUTS, 150 W, 24 V, 6.3 A

Deep-Dive with AI

DocumentsZWS150BAF/A Spec Datasheet +4

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 120.50
		10	$ 118.32
		25	$ 107.18
		50	$ 103.85
Newark	Each	1	$ 120.50
		10	$ 118.32
		25	$ 107.18
		50	$ 103.85

Description

General part information

ZWS150 Series

Enclosed AC DC Converters 1 Output 24V 85 ~ 265 VAC Input

Documents

Technical documentation and resources

Specification	ZWS150BAF-24/A	ZWS150 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CE	CE
Current - Output 1	6.3 A	3.2 - 30 A
Efficiency	88 %	84 - 89 %
Features	PFC, Adjustable Output, Universal Input	Adjustable Output, Remote On/Off, DC Input Capable, PFC, Universal Input, Load Sharing
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-10 °C	-10 °C
Power (Watts)	150 W	150 W
Size / Dimension [x]	6.3 "	6.3 "
Size / Dimension [x]	160 mm	160 mm
Size / Dimension [y]	2.95 in	2.95 in
Size / Dimension [y]	75 mm	75 mm
Size / Dimension [z]	37 mm	37 mm
Size / Dimension [z]	1.46 "	1.46 "
Type	Enclosed	Open Frame, Enclosed, Conformal Coated
Voltage - Input [Max]	265 VAC	265 VAC
Voltage - Input [Min]	85 VAC	85 VAC
Voltage - Isolation	3000 V	3000 V
Voltage - Output 1	24 V	3.3 - 48 V

Part

Mounting Type

Applications

Type

Voltage - Input [Min]

Voltage - Input [Max]

Voltage - Output 1

Efficiency

Operating Temperature [Min]

Operating Temperature [Max]

Power (Watts)

Size / Dimension [y]

Size / Dimension [z]

Size / Dimension [x]

Size / Dimension [z]

Size / Dimension [x]

Voltage - Isolation

Current - Output 1

Number of Outputs

Features

Approval Agency

TDK-LAMBDA

ZWS150BAF-48/R

Chassis Mount

ITE (Commercial)

Open Frame

85 VAC

265 VAC

48 V

89 %

-10 °C

70 °C

150 W

2.95 in

75 mm

37 mm

6.3 "

1.46 "

160 mm

3000 V

3.2 A

Adjustable Output, DC Input Capable, Load Sharing, PFC, Remote On/Off, Universal Input

TDK-LAMBDA

ZWS150BAF-12/A

Chassis Mount

ITE (Commercial)

Enclosed

85 VAC

265 VAC

12 V

85 %

-10 °C

70 °C

150 W

2.95 in

75 mm

37 mm

6.3 "

1.46 "

160 mm

3000 V

12.5 A

Adjustable Output, PFC, Universal Input

TDK-LAMBDA

ZWS150BP-24/L

Chassis Mount

ITE (Commercial)

Open Frame

85 VAC

265 VAC

24 V

87 %

-10 °C

70 °C

150 W

2.95 in

75 mm

37 mm

6.3 "

1.46 "

160 mm

3000 V

6.3 A

Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input

TDK-LAMBDA

ZWS150BP-48

Chassis Mount

ITE (Commercial)

Open Frame

85 VAC

265 VAC

48 V

87 %

-10 °C

70 °C

150 W

2.95 in

75 mm

37 mm

6.3 "

1.46 "

160 mm

3000 V

3.2 A

Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input

TDK-LAMBDA

ZWS150BAF-15/CO2

Chassis Mount

ITE (Commercial)

Conformal Coated, Open Frame

85 VAC

265 VAC

15 V

86 %

-10 °C

70 °C

150 W

2.95 in

75 mm

37 mm

6.3 "

1.46 "

160 mm

3000 V

10 A

Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input

TDK-LAMBDA

ZWS150BP-24

Chassis Mount

ITE (Commercial)

Open Frame

85 VAC

265 VAC

24 V

87 %

-10 °C

70 °C

150 W

2.95 in

75 mm

37 mm

6.3 "

1.46 "

160 mm

3000 V

6.3 A

Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input

TDK-LAMBDA

ZWS150BAF-3/A

Chassis Mount

ITE (Commercial)

Enclosed

85 VAC

265 VAC

3.3 V

-10 °C

70 °C

150 W

2.95 in

75 mm

37 mm

6.3 "

1.46 "

160 mm

3000 V

30 A

Adjustable Output, PFC, Universal Input

TDK-LAMBDA

ZWS150BAF-12/R

Chassis Mount

ITE (Commercial)

Open Frame

85 VAC

265 VAC

12 V

85 %

-10 °C

70 °C

150 W

2.95 in

75 mm

37 mm

6.3 "

1.46 "

160 mm

3000 V

12.5 A

Adjustable Output, DC Input Capable, Load Sharing, PFC, Remote On/Off, Universal Input

TDK-LAMBDA

ZWS150BAF-3

Chassis Mount

ITE (Commercial)

Open Frame

85 VAC

265 VAC

3.3 V

84 %

-10 °C

70 °C

150 W

2.95 in

75 mm

37 mm

6.3 "

1.46 "

160 mm

3000 V

30 A

Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input

TDK-LAMBDA

ZWS150BAF-5/CO2

Chassis Mount

ITE (Commercial)

Conformal Coated, Open Frame

85 VAC

265 VAC

5 V

85 %

-10 °C

70 °C

150 W

2.95 in

75 mm

37 mm

6.3 "

1.46 "

160 mm

3000 V

30 A

Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input

Part	Mounting Type	Applications	Type	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output 1	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Isolation	Current - Output 1	Number of Outputs	Features	Approval Agency
TDK-LAMBDA ZWS150BAF-48/R	Chassis Mount	ITE (Commercial)	Open Frame	85 VAC	265 VAC	48 V	89 %	-10 °C	70 °C	150 W	2.95 in	75 mm	37 mm	6.3 "	1.46 "	160 mm	3000 V	3.2 A	1	Adjustable Output, DC Input Capable, Load Sharing, PFC, Remote On/Off, Universal Input	CE
TDK-LAMBDA ZWS150BAF-12/A	Chassis Mount	ITE (Commercial)	Enclosed	85 VAC	265 VAC	12 V	85 %	-10 °C	70 °C	150 W	2.95 in	75 mm	37 mm	6.3 "	1.46 "	160 mm	3000 V	12.5 A	1	Adjustable Output, PFC, Universal Input	CE
TDK-LAMBDA ZWS150BP-24/L	Chassis Mount	ITE (Commercial)	Open Frame	85 VAC	265 VAC	24 V	87 %	-10 °C	70 °C	150 W	2.95 in	75 mm	37 mm	6.3 "	1.46 "	160 mm	3000 V	6.3 A	1	Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input	CE
TDK-LAMBDA ZWS150BP-48	Chassis Mount	ITE (Commercial)	Open Frame	85 VAC	265 VAC	48 V	87 %	-10 °C	70 °C	150 W	2.95 in	75 mm	37 mm	6.3 "	1.46 "	160 mm	3000 V	3.2 A	1	Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input	CE
TDK-LAMBDA ZWS150BAF-15/CO2	Chassis Mount	ITE (Commercial)	Conformal Coated, Open Frame	85 VAC	265 VAC	15 V	86 %	-10 °C	70 °C	150 W	2.95 in	75 mm	37 mm	6.3 "	1.46 "	160 mm	3000 V	10 A	1	Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input	CE
TDK-LAMBDA ZWS150BP-24	Chassis Mount	ITE (Commercial)	Open Frame	85 VAC	265 VAC	24 V	87 %	-10 °C	70 °C	150 W	2.95 in	75 mm	37 mm	6.3 "	1.46 "	160 mm	3000 V	6.3 A	1	Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input	CE
TDK-LAMBDA ZWS150BAF-3/A	Chassis Mount	ITE (Commercial)	Enclosed	85 VAC	265 VAC	3.3 V		-10 °C	70 °C	150 W	2.95 in	75 mm	37 mm	6.3 "	1.46 "	160 mm	3000 V	30 A	1	Adjustable Output, PFC, Universal Input	CE
TDK-LAMBDA ZWS150BAF-12/R	Chassis Mount	ITE (Commercial)	Open Frame	85 VAC	265 VAC	12 V	85 %	-10 °C	70 °C	150 W	2.95 in	75 mm	37 mm	6.3 "	1.46 "	160 mm	3000 V	12.5 A	1	Adjustable Output, DC Input Capable, Load Sharing, PFC, Remote On/Off, Universal Input	CE
TDK-LAMBDA ZWS150BAF-3	Chassis Mount	ITE (Commercial)	Open Frame	85 VAC	265 VAC	3.3 V	84 %	-10 °C	70 °C	150 W	2.95 in	75 mm	37 mm	6.3 "	1.46 "	160 mm	3000 V	30 A	1	Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input	CE
TDK-LAMBDA ZWS150BAF-5/CO2	Chassis Mount	ITE (Commercial)	Conformal Coated, Open Frame	85 VAC	265 VAC	5 V	85 %	-10 °C	70 °C	150 W	2.95 in	75 mm	37 mm	6.3 "	1.46 "	160 mm	3000 V	30 A	1	Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input	CE
