AP-145/3-1

Active

Amphenol NEXUS Technologies

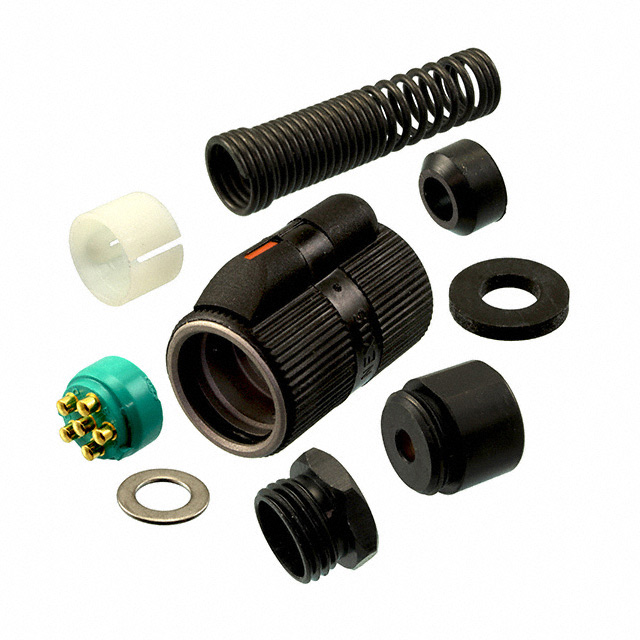

CONN PLUG FMALE 5P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Amphenol NEXUS Technologies

CONN PLUG FMALE 5P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AP-145/3-1	AP-145 Series

Applications	Audio, Video, Military	Audio, Video, Military, Communication Systems
Backshell Material, Plating	Aluminum, Anodized	Aluminum, Anodized
Cable Opening [custom]	0.165 in	0.165 - 0.325 in
Cable Opening [custom]	4.2 mm	4.2 - 8.26 mm
Color	Black	Black
Connector Type	Female Sockets, Plug	Female Sockets, Plug
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	0.5 A	0.5 A
Fastening Type	Bayonet Lock	Bayonet Lock
Insert Material	Diallyl Phthalate (DAP)	Diallyl Phthalate (DAP), Thermoplastic
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic, Metal
Qualification	MIL-DTL-55116	MIL-DTL-55116
Shell Finish	-	Passivated
Shell Material	Stainless Steel, Nylon, Polyamide (PA), Glass Filled	Stainless Steel, Nylon, Polyamide (PA), Glass Filled
Shielding	-	Unshielded
Voltage Rating	60 VDC	60 VDC

CONN PLUG FMALE 5P GOLD SLDR CUP

Part	Applications	Orientation	Contact Finish - Mating	Connector Type	Mounting Type	Backshell Material, Plating	Operating Temperature [Max]	Operating Temperature [Min]	Primary Material	Fastening Type	Insert Material	Cable Opening [custom]	Cable Opening [custom]	Qualification	Color	Shell Material	Current Rating (Amps)	Contact Material	Voltage Rating	Shielding	Shell Finish
Amphenol NEXUS Technologies AP-145/3-1	Audio, Military, Video	Keyed	Gold	Female Sockets, Plug	Free Hanging (In-Line)	Aluminum, Anodized	85 °C	-55 °C	Plastic	Bayonet Lock	Diallyl Phthalate (DAP)	0.165 in	4.2 mm	MIL-DTL-55116	Black	Glass Filled, Nylon, Polyamide (PA), Stainless Steel	0.5 A	Brass	60 VDC
Amphenol NEXUS Technologies AP-145SD/5	Audio, Communication Systems, Military, Video	Keyed	Gold	Female Sockets, Plug	Free Hanging (In-Line)		85 °C	-55 °C	Metal	Bayonet Lock	Thermoplastic	0.325 in	8.26 mm		Black	Stainless Steel	0.5 A	Brass	60 VDC	Unshielded	Passivated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Plug, Female Sockets Solder Cup
