1410279-7

Active

TE Connectivity AMP Connectors

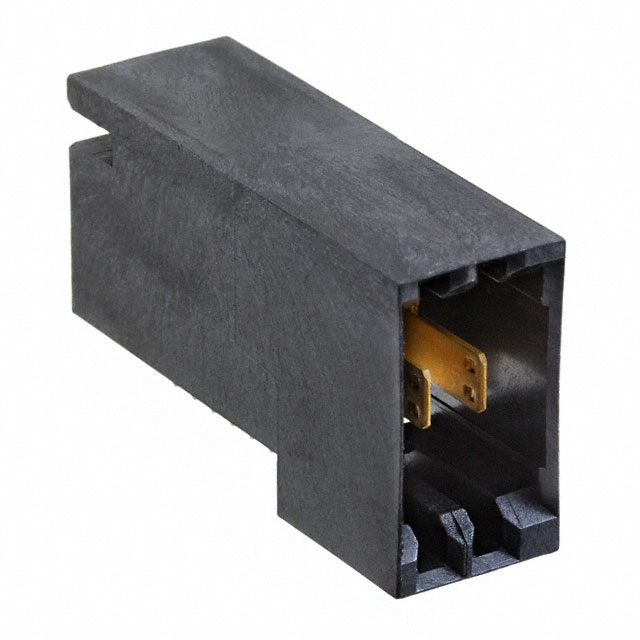

CONN HEADER BLADE PWR 2POS PCB

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER BLADE PWR 2POS PCB

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1410279-7	1410279 Series

Color	Black	Black
Connector Style	Blade Power	Blade Power
Connector Type	Male Blades, Header	Male Blades, Header
Connector Usage	-	Backplane, Orthogonal
Contact Finish	Gold	Gold
Contact Finish Thickness	50 µin	50 µin
Contact Finish Thickness	1.27 µm	1.27 µm
Contact Layout, Typical	2 Power	2 Power
Current Rating (Amps)	-	20 A
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	2	2
Number of Positions Loaded	All	All
Operating Temperature	-	105 ░C
Operating Temperature	-	-55 °C
Termination	Solder	Solder, Press-Fit
Voltage Rating	-	250 VDC

CONN HEADER BLADE PWR 2POS PCB

Part	Color	Number of Positions Loaded	Contact Layout, Typical	Connector Style	Termination	Material Flammability Rating	Contact Finish	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Connector Type	Current Rating (Amps)	Connector Usage	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]
TE Connectivity AMP Connectors 1410279-7	Black	All	2 Power	Blade Power	Solder	UL94 V-0	Gold	Through Hole, Right Angle	50 µin	1.27 µm	2	Header, Male Blades
TE Connectivity AMP Connectors 1410279-8	Black	All	2 Power	Blade Power	Press-Fit	UL94 V-0	Gold	Through Hole, Right Angle	50 µin	1.27 µm	2	Header, Male Blades	20 A	Backplane, Orthogonal	250 VDC	105 ░C	-55 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Connector Header, Male Blades Through Hole, Right Angle Black Blade Power
