Description
General part information

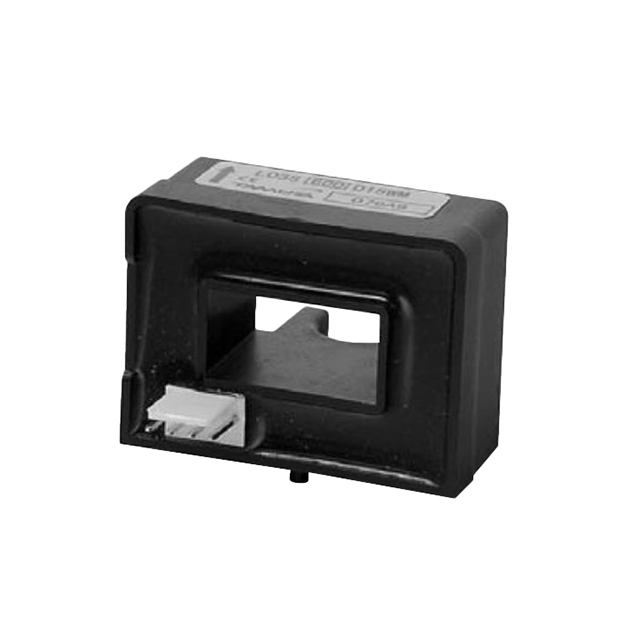

L03S600D15WM
Current Sensor 600A 1 Channel Hall Effect, Open Loop Bidirectional Module
Technical Specifications
Parameters and characteristics for this part
| Specification | L03S600D15WM |
|---|---|
| Current - Sensing | 600 A |
| Current - Supply (Max) | 20 mA |
| For Measuring | AC, DC |
| Linearity Tolerance | 1 % |
| Maximum Frequency | 100 kHz |
| Minimum Frequency | DC |
| Mounting Type | Chassis Mount |
| Number of Channels | 1 |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -10 °C |
| Output | Voltage, Ratiometric |
| Package / Case | Module |
| Polarization | Bidirectional |
| Response Time | 10 µs |
| Sensor Type | Hall Effect, Open Loop |
| Voltage - Supply | 15 VDC |
