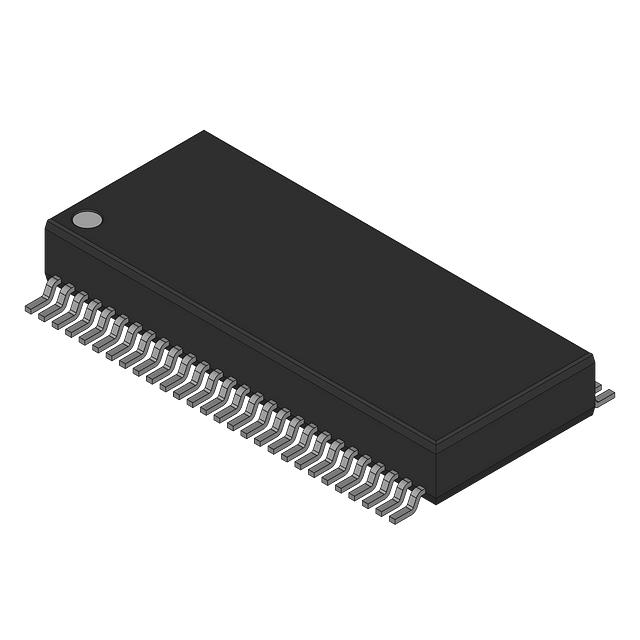

74LVCH16601APVG
ActiveIDT, Integrated Device Technology Inc
UNIVERSAL BUS TRANSCEIVER
Deep-Dive with AI
Search across all available documentation for this part.
74LVCH16601APVG
ActiveIDT, Integrated Device Technology Inc
UNIVERSAL BUS TRANSCEIVER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 74LVCH16601APVG |
|---|---|
| Current - Output High, Low | 24 mA |
| Mounting Type | Surface Mount |
| Number of Circuits | 18 Bit |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 0.295 in |
| Package / Case | 56-BSSOP |
| Package / Case | 7.5 mm |
| Supplier Device Package | 56-SSOP |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 2.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1025 | $ 0.29 | |
74LVCH16601 Series
UNIVERSAL BUS TRANSCEIVER
| Part | Supplier Device Package | Package / Case | Package / Case | Package / Case | Number of Circuits | Current - Output High, Low | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Voltage - Supply [Min] | Voltage - Supply [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|
IDT, Integrated Device Technology Inc 74LVCH16601APVG | 56-SSOP | 0.295 in | 56-BSSOP | 7.5 mm | 18 Bit | 24 mA | 85 °C | -40 °C | Surface Mount | 2.3 V | 3.6 V |
Description
General part information
74LVCH16601 Series
Universal Bus Transceiver 18-Bit 56-SSOP
Documents
Technical documentation and resources
No documents available
