104313-1

Active

TE Connectivity AMP Connectors

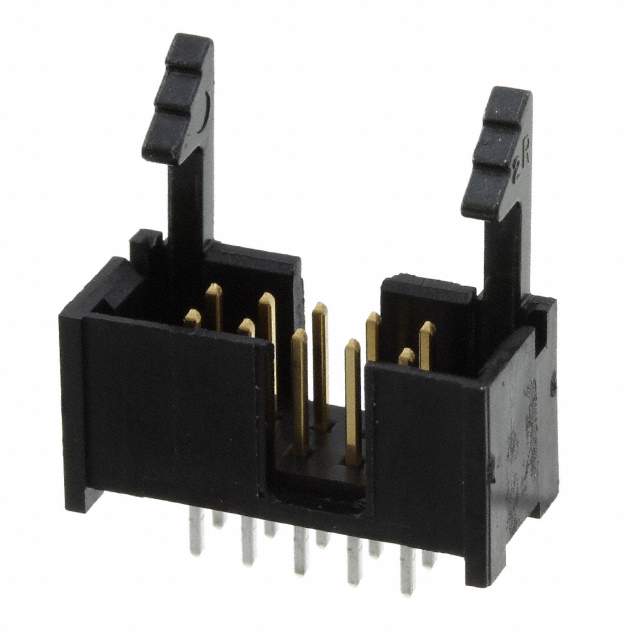

CONN HEADER VERT 10POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

104313-1

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 10POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	104313-1	104313 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold or Gold-Palladium	Gold or Gold-Palladium
Contact Finish - Post	Tin-Lead	Tin-Lead
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	2.54 µm	2.54 µm
Contact Finish Thickness - Post	100 µin	100 µin
Contact Length - Mating	6.1 mm	6.1 mm
Contact Length - Mating [x]	0.24 in	0.24 in
Contact Length - Post [x]	0.12 in	0.12 in
Contact Length - Post [x]	3.05 mm	3.05 mm
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	1 A	1 A
Fastening Type	Latch Lock/Eject Hooks, Short	Latch Lock/Eject Hooks, Short
Features	Keying Slot	Keying Slot
Insulation Color	Black	Black
Insulation Height	0.385 in	0.385 in
Insulation Height	9.78 mm	9.78 mm
Insulation Material	Nylon, Polyamide (PA), Glass Filled	Nylon, Polyamide (PA), Glass Filled
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	10	10 - 60
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	250 VAC	250 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.08
		10	$ 3.64
		120	$ 3.23
		1080	$ 2.65

104313 Series

CONN HEADER VERT 20POS 2.54MM

Part	Fastening Type	Contact Shape	Contact Length - Mating	Contact Length - Mating [x]	Contact Type	Contact Material	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Current Rating (Amps)	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Shrouding	Pitch - Mating	Pitch - Mating	Features	Material Flammability Rating	Style	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Voltage Rating	Contact Finish - Mating	Number of Rows	Contact Finish - Post	Termination	Number of Positions Loaded	Insulation Color	Contact Length - Post [x]	Contact Length - Post [x]
TE Connectivity AMP Connectors 104313-4	Latch Lock/Eject Hooks, Short	Square	6.1 mm	0.24 in	Male Pin	Brass	Header	-65 ░C	105 ░C	30 Áin	0.76 Ám	0.385 in	9.78 mm	1 A	2.54 mm	0.1 in	20	Shrouded - 4 Wall	0.1 in	2.54 mm	Keying Slot	UL94 V-0	Board to Cable/Wire	Through Hole	2.54 µm	100 µin	Glass Filled, Nylon, Polyamide (PA)	250 VAC	Gold or Gold-Palladium	2	Tin-Lead	Solder	All	Black	0.12 in	3.05 mm
TE Connectivity AMP Connectors 1-104313-0	Latch Lock/Eject Hooks, Short	Square	6.1 mm	0.24 in	Male Pin	Brass	Header	-65 ░C	105 ░C	30 Áin	0.76 Ám	0.385 in	9.78 mm	1 A	2.54 mm	0.1 in	60	Shrouded - 4 Wall	0.1 in	2.54 mm	Keying Slot	UL94 V-0	Board to Cable/Wire	Through Hole	2.54 µm	100 µin	Glass Filled, Nylon, Polyamide (PA)	250 VAC	Gold or Gold-Palladium	2	Tin-Lead	Solder	All	Black	0.12 in	3.05 mm
TE Connectivity AMP Connectors 104313-9	Latch Lock/Eject Hooks, Short	Square	6.1 mm	0.24 in	Male Pin	Brass	Header	-65 ░C	105 ░C	30 Áin	0.76 Ám	0.385 in	9.78 mm	1 A	2.54 mm	0.1 in	50	Shrouded - 4 Wall	0.1 in	2.54 mm	Keying Slot	UL94 V-0	Board to Cable/Wire	Through Hole	2.54 µm	100 µin	Glass Filled, Nylon, Polyamide (PA)	250 VAC	Gold or Gold-Palladium	2	Tin-Lead	Solder	All	Black	0.12 in	3.05 mm
TE Connectivity AMP Connectors 104313-6	Latch Lock/Eject Hooks, Short	Square	6.1 mm	0.24 in	Male Pin	Brass	Header	-65 ░C	105 ░C	30 Áin	0.76 Ám	0.385 in	9.78 mm	1 A	2.54 mm	0.1 in	34	Shrouded - 4 Wall	0.1 in	2.54 mm	Keying Slot	UL94 V-0	Board to Cable/Wire	Through Hole	2.54 µm	100 µin	Glass Filled, Nylon, Polyamide (PA)	250 VAC	Gold or Gold-Palladium	2	Tin-Lead	Solder	All	Black	0.12 in	3.05 mm
TE Connectivity AMP Connectors 104313-1	Latch Lock/Eject Hooks, Short	Square	6.1 mm	0.24 in	Male Pin	Brass	Header	-65 ░C	105 ░C	30 Áin	0.76 Ám	0.385 in	9.78 mm	1 A	2.54 mm	0.1 in	10	Shrouded - 4 Wall	0.1 in	2.54 mm	Keying Slot	UL94 V-0	Board to Cable/Wire	Through Hole	2.54 µm	100 µin	Glass Filled, Nylon, Polyamide (PA)	250 VAC	Gold or Gold-Palladium	2	Tin-Lead	Solder	All	Black	0.12 in	3.05 mm
TE Connectivity AMP Connectors 104313-2	Latch Lock/Eject Hooks, Short	Square	6.1 mm	0.24 in	Male Pin	Brass	Header	-65 ░C	105 ░C	30 Áin	0.76 Ám	0.385 in	9.78 mm	1 A	2.54 mm	0.1 in	14	Shrouded - 4 Wall	0.1 in	2.54 mm	Keying Slot	UL94 V-0	Board to Cable/Wire	Through Hole	2.54 µm	100 µin	Glass Filled, Nylon, Polyamide (PA)	250 VAC	Gold or Gold-Palladium	2	Tin-Lead	Solder	All	Black	0.12 in	3.05 mm

Description

General part information

104313 Series

Connector Header Through Hole 10 position 0.100" (2.54mm)
