3502AAU
ActiveRCA (PHONO) AUDIO / VIDEO CONNECTOR, PLUG, GOLD PLATED CONTACTS, ZINC ALLOY BODY
3502AAU
ActiveRCA (PHONO) AUDIO / VIDEO CONNECTOR, PLUG, GOLD PLATED CONTACTS, ZINC ALLOY BODY
Description
General part information
3502AAU

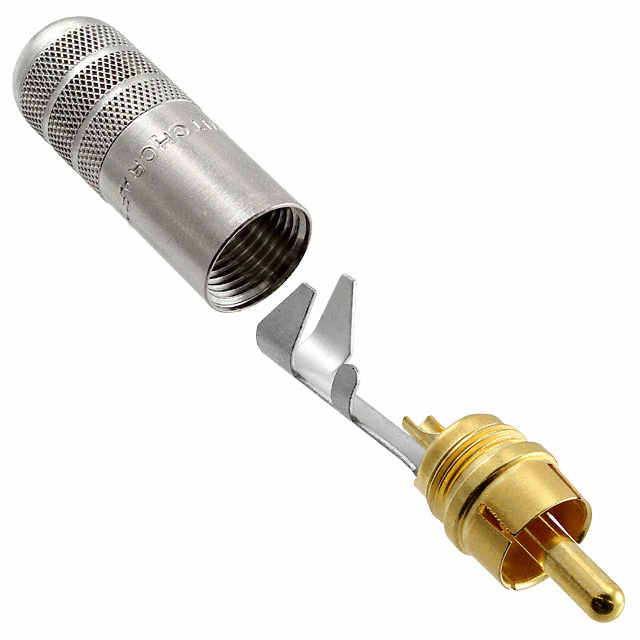

The 3502AAU is a 2-conductor cable-mount shielded straight RCA Plug with solid pins and a long handle. It has electro-tin-plated CRS cable clamp and a rigid plastic insulator. It features an easy-to-assemble construction. The plug features a solid-pin design and large solder terminals that make termination faster and easier.
Technical Specifications
Parameters and characteristics for this part
| Specification | 3502AAU |
|---|---|
| Body Color | Silver |
| Body Material | Brass |
| Cable Opening | 0.29 in |
| Connector Type | Phono (RCA) Plug |
| Contact Material | Copper Alloy |
| Contact Material - Plating | Gold |
| Gender | Male |
| Housing Material | Brass |
| Includes | Connector, Handle |
| Includes Total Count | 2 pcs |
| Industry Recognized Mating Diameter (ID) | 3.2 mm |
| Industry Recognized Mating Diameter (OD) | 9 mm |
| Internal Switch(s) | Does Not Contain Switch |
| Mounting Type | Free Hanging (In-Line) |
| Number of Conductors | 2 Conductors |
| Number of Contacts | 2 Contacts |
| Shielding | Shielded |
| Signal Lines | Mono |
| Termination | Solder Cup |
