H24B-AG-SL
ActiveTE Connectivity AMP Connectors

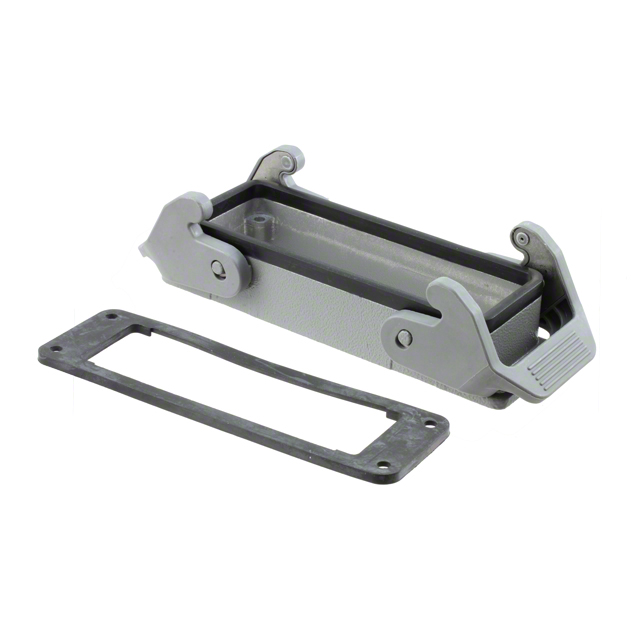

CONN BASE BOTTOM SZ24B
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
H24B-AG-SL
ActiveTE Connectivity AMP Connectors
CONN BASE BOTTOM SZ24B
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | H24B-AG-SL | H24B Series |
|---|---|---|
| Connector Type | Base - Panel Mount | Base - Box Mount, Hood, Base - Panel Mount |
| Features | - | Cover |
| Housing Color | Gray | Gray |
| Housing Finish | Powder Coated | Powder Coated |
| Housing Material | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (2) on Base Bottom | Locking Clip (2) on Hood, Locking Clip (2) on Base Bottom, Locking Clip (1) on Base Bottom |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Size | 24 B | 24 B |
| Size / Dimension [x] | 142.2 mm | 120 - 144 mm |
| Size / Dimension [x] | 5.598 in | 4.724 - 5.669 " |
| Size / Dimension [y] | 1.799 " | 1.693 - 2.244 " |
| Size / Dimension [y] | 45.7 mm | 43 - 57 mm |
| Size / Dimension [z] | 1.173 in | 1.173 - 2.992 " |
| Size / Dimension [z] | 29.8 mm | 29.8 - 76 mm |
| Style | Bottom Entry | Side Entry, Dual, Top Entry, Bottom Entry |
| Thread Size | - | M32, PG21, M25, PG29 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 17.38 | |
| 10 | $ 17.02 | |||
| 25 | $ 16.56 | |||
| 50 | $ 15.75 | |||
| 100 | $ 14.21 | |||
| 250 | $ 14.12 | |||
| 500 | $ 12.31 | |||
H24B Series
CONN BASE SIDE DUAL SZ24B M32
| Part | Size | Style | Housing Finish | Thread Size | Housing Color | Connector Type | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Ingress Protection | Lock Location | Operating Temperature [Max] | Operating Temperature [Min] | Housing Material | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors H24B-SDRH-BO-2M32 | 24 B | Side Entry | Powder Coated | M32 | Gray | Base - Box Mount | 57 mm | 2.976 " | 144 mm | 2.244 " | 5.669 " | 75.6 mm | IP65 - Dust Tight, Water Resistant | Locking Clip (2) on Hood | 125 °C | -40 °C | Aluminum Alloy, Die Cast | |
TE Connectivity AMP Connectors H24B-TGH-2PG21 | 24 B | Dual, Top Entry | Powder Coated | PG21 | Gray | Hood | 43 mm | 2.992 in | 120 mm | 1.693 in | 4.724 " | 76 mm | IP65 - Dust Tight, Water Resistant | Locking Clip (2) on Base Bottom | 125 °C | -40 °C | Aluminum Alloy, Die Cast | |
TE Connectivity AMP Connectors H24B-AD-LB | 24 B | Bottom Entry | Powder Coated | Gray | Base - Panel Mount | 45.7 mm | 1.173 in | 142.2 mm | 1.799 " | 5.598 in | 29.8 mm | IP65 - Dust Tight, Water Resistant | Locking Clip (1) on Base Bottom | 125 °C | -40 °C | Aluminum Alloy, Die Cast | Cover | |
TE Connectivity AMP Connectors H24B-ADM-LB | 24 B | Bottom Entry | Powder Coated | Gray | Base - Panel Mount | 45.7 mm | 1.173 in | 142.2 mm | 1.799 " | 5.598 in | 29.8 mm | IP65 - Dust Tight, Water Resistant | Locking Clip (1) on Base Bottom | 125 °C | -40 °C | Aluminum Alloy, Die Cast | Cover | |
TE Connectivity AMP Connectors H24B-TS-PG21 | 24 B | Side Entry | Powder Coated | PG21 | Gray | Hood | 43 mm | 2.362 " | 120 mm | 1.693 in | 4.724 " | 60 mm | IP65 - Dust Tight, Water Resistant | Locking Clip (2) on Base Bottom | 125 °C | -40 °C | Aluminum Alloy, Die Cast | |
TE Connectivity AMP Connectors H24B-TSH-M40 | 24 B | Side Entry | Powder Coated | Gray | Hood | 43 mm | 2.992 in | 120 mm | 1.693 in | 4.724 " | 76 mm | IP65 - Dust Tight, Water Resistant | Locking Clip (2) on Base Bottom | 125 °C | -40 °C | Aluminum Alloy, Die Cast | ||
TE Connectivity AMP Connectors H24B-AG-SL | 24 B | Bottom Entry | Powder Coated | Gray | Base - Panel Mount | 45.7 mm | 1.173 in | 142.2 mm | 1.799 " | 5.598 in | 29.8 mm | IP65 - Dust Tight, Water Resistant | Locking Clip (2) on Base Bottom | 125 °C | -40 °C | Aluminum Alloy, Die Cast | ||
TE Connectivity AMP Connectors H24B-AD-BO | 24 B | Bottom Entry | Powder Coated | Base - Panel Mount | 45.7 mm | 1.173 in | 142.2 mm | 1.799 " | 5.598 in | 29.8 mm | IP65 - Dust Tight, Water Resistant | Locking Clip (2) on Hood | 125 °C | -40 °C | Aluminum Alloy, Die Cast | Cover | ||
TE Connectivity AMP Connectors H24B-SDR-BO-PG21 | 24 B | Side Entry | Powder Coated | PG21 | Gray | Base - Box Mount | IP65 - Dust Tight, Water Resistant | Locking Clip (2) on Hood | 125 °C | -40 °C | Aluminum Alloy, Die Cast | Cover | ||||||
TE Connectivity AMP Connectors H24B-TGH-M32 | 24 B | Top Entry | Powder Coated | M32 | Gray | Hood | 43 mm | 2.992 in | 120 mm | 1.693 in | 4.724 " | 76 mm | IP65 - Dust Tight, Water Resistant | Locking Clip (2) on Base Bottom | 125 °C | -40 °C | Aluminum Alloy, Die Cast | |
TE Connectivity AMP Connectors H24B-SGR-M25 | 24 B | Side Entry | Powder Coated | M25 | Gray | Base - Box Mount | IP65 - Dust Tight, Water Resistant | Locking Clip (2) on Base Bottom | 125 °C | -40 °C | Aluminum Alloy, Die Cast | |||||||
TE Connectivity AMP Connectors H24B-TGH-2PG29 | 24 B | Dual, Top Entry | Powder Coated | PG29 | Gray | Hood | 43 mm | 2.992 in | 120 mm | 1.693 in | 4.724 " | 76 mm | IP65 - Dust Tight, Water Resistant | Locking Clip (2) on Base Bottom | 125 °C | -40 °C | Aluminum Alloy, Die Cast | |
TE Connectivity AMP Connectors H24B-AG | 24 B | Bottom Entry | Powder Coated | Gray | Base - Panel Mount | 45.7 mm | 1.173 in | 142.2 mm | 1.799 " | 5.598 in | 29.8 mm | IP65 - Dust Tight, Water Resistant | Locking Clip (2) on Base Bottom | 125 °C | -40 °C | Aluminum Alloy, Die Cast | ||
TE Connectivity AMP Connectors H24B-TS-M25 | 24 B | Side Entry | Powder Coated | M25 | Gray | Hood | 43 mm | 2.362 " | 120 mm | 1.693 in | 4.724 " | 60 mm | IP65 - Dust Tight, Water Resistant | Locking Clip (2) on Base Bottom | 125 °C | -40 °C | Aluminum Alloy, Die Cast | |
TE Connectivity AMP Connectors H24B-TSB-PG21 | 24 B | Side Entry | Powder Coated | PG21 | Gray | Hood | 43 mm | 2.362 " | 120 mm | 1.693 in | 4.724 " | 60 mm | IP65 - Dust Tight, Water Resistant | Locking Clip (2) on Hood | 125 °C | -40 °C | Aluminum Alloy, Die Cast | |
TE Connectivity AMP Connectors H24B-SDRH-BO-PG29 | 24 B | Side Entry | Powder Coated | PG29 | Gray | Base - Box Mount | 57 mm | 2.976 " | 144 mm | 2.244 " | 5.669 " | 75.6 mm | IP65 - Dust Tight, Water Resistant | Locking Clip (2) on Hood | 125 °C | -40 °C | Aluminum Alloy, Die Cast | Cover |
TE Connectivity AMP Connectors H24B-TSH-RO-PG21 | 24 B | Side Entry | Powder Coated | PG21 | Gray | Hood | 43 mm | 2.992 in | 120 mm | 1.693 in | 4.724 " | 76 mm | IP65 - Dust Tight, Water Resistant | Locking Clip (2) on Base Bottom | 125 °C | -40 °C | Aluminum Alloy, Die Cast |
Description
General part information
H24B Series
Base - Panel Mount Connector Bottom Entry 24B IP65 - Dust Tight, Water Resistant
Documents
Technical documentation and resources
