Description
General part information

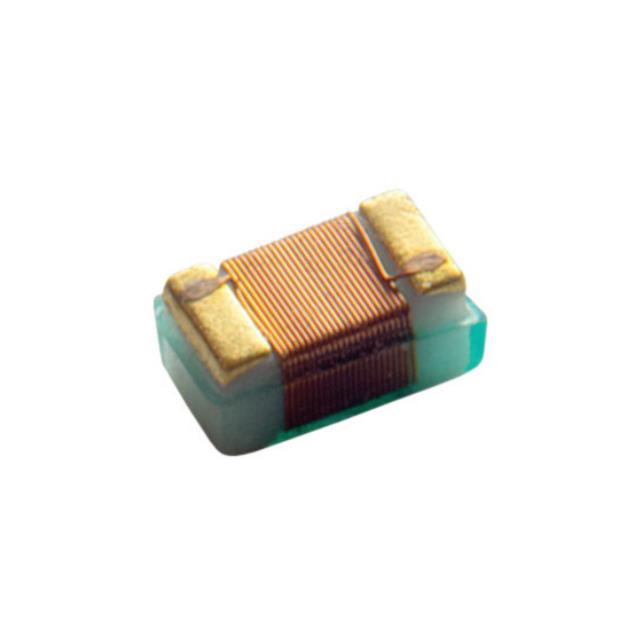

C0603C-30N0J1Y
30 nH Unshielded Wirewound Inductor 565 mA 220mOhm Max 0603 (1608 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | C0603C-30N0J1Y |
|---|---|
| Current Rating | 565 mA |
| DC Resistance (DCR) (Max) | 220 mOhm |
| Frequency - Self Resonant | 2.25 GHz |
| Height - Seated (Max) | 0.04 in |
| Inductance | 30 nH |
| Inductance Frequency - Test | 250 MHz |
| Material - Core | Ceramic |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 0603 (1608 Metric) |
| Package Name | 0603 |
| Q | 37 |
| Shielding | Unshielded |
| Size / Dimension Length | 0.071 in |
| Size / Dimension Width | 0.047 in |
| Tolerance | 5 % |
| Type | Wirewound |
