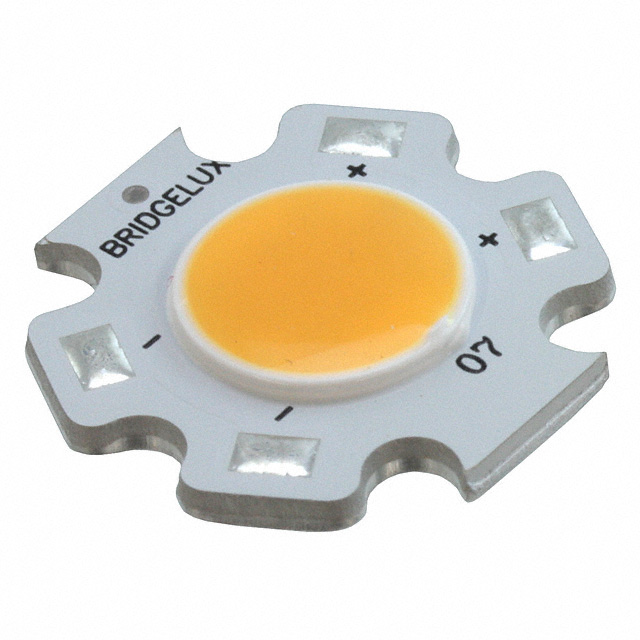

BXRA-27G0740-A-00

Obsolete

BRIDGELUX

LED COB ES WH STARBRD 2700K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BXRA-27G0740-A-00

Obsolete

BRIDGELUX

LED COB ES WH STARBRD 2700K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BXRA-27G0740-A-00

CCT (K)	2700 K
Color	White, Warm
Configuration	Starboard
CRI (Color Rendering Index)	90
Current - Max [Max]	500 mA
Current - Test	350 mA
Height [z]	3 mm
Lens Type	Domed
Lumens/Watt @ Current - Test	75 lm/W
Luminous Flux @ Current/Temperature	720 lm
Size / Dimension [x]	19.9 mm
Size / Dimension [y]	19.9 mm
Type	Chip On Board (COB)
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	27.3 V

BXRA-27 Series

Part	Lumens/Watt @ Current - Test	Temperature - Test	Lens Type	Type	Luminous Flux @ Current/Temperature	Voltage - Forward (Vf) (Typ)	Color	Height [z]	Viewing Angle	CRI (Color Rendering Index)	Current - Test	Size / Dimension [y]	Size / Dimension [x]	Current - Max [Max]	Configuration	CCT (K)
BRIDGELUX BXRA-27H4000-H-03	57 lm/W	85 °C	Flat	Chip On Board (COB)	2795 lm	23.5 V	Warm White	2.6 mm	120 °	97	2.1 A	45.3 mm	49.5 mm	3 A	Rectangle	2700 K
BRIDGELUX BXRA-27G4000-H-00	80 lm/W		Domed	Chip On Board (COB)	3950 lm	23.5 V	Warm White	3 mm	120 °	90	2.1 A	2 in	45.6 mm	3 A	Square	2700 K
BRIDGELUX BXRA-27E0800-B-00	92 lm/W		Domed	Chip On Board (COB)	950 lm		Warm White	3 mm	120 °	80	500 mA	25.8 mm	22.8 mm	1 A	Rectangle	2700 K
BRIDGELUX BXRA-27G1200-B-00	80 lm/W		Domed	Chip On Board (COB)	1190 lm		Warm White	3 mm	120 °	90	500 mA	25.8 mm	22.8 mm	750 mA	Rectangle	2700 K
BRIDGELUX BXRA-27G2000-B-03	76 lm/W		Domed	Chip On Board (COB)	1975 lm	37 V	Warm White	3 mm	120 °	90		25.8 mm	22.8 mm	1 A	Rectangle	2700 K
BRIDGELUX BXRA-27G0800-B-03	78 lm/W		Domed	Chip On Board (COB)	810 lm		Warm White	3 mm	120 °	90	500 mA	25.8 mm	22.8 mm	750 mA	Rectangle	2700 K
BRIDGELUX BXRA-27E4000-H-00	94 lm/W		Domed	Chip On Board (COB)	4640 lm	23.5 V	Warm White	3 mm	120 °	80	2.1 A	2 in	45.6 mm	3 A	Square	2700 K
BRIDGELUX BXRA-27E1200-B-03	95 lm/W		Domed	Chip On Board (COB)	1400 lm		Warm White	3 mm	120 °	80	500 mA	25.8 mm	22.8 mm	1 A	Rectangle	2700 K
BRIDGELUX BXRA-27G1200-B-03	80 lm/W		Domed	Chip On Board (COB)	1190 lm		Warm White	3 mm	120 °	90	500 mA	25.8 mm	22.8 mm	750 mA	Rectangle	2700 K
BRIDGELUX BXRA-27E2000-B-03	87 lm/W		Domed	Chip On Board (COB)	2260 lm	37 V	Warm White	3 mm	120 °	80		25.8 mm	22.8 mm	1 A	Rectangle	2700 K

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

BXRA-27 Series

LED Lighting COBs Engines Modules Chip On Board (COB) ES STAR White, Warm Starboard
