AFP8801

Active

Panasonic Industrial Automation Sales

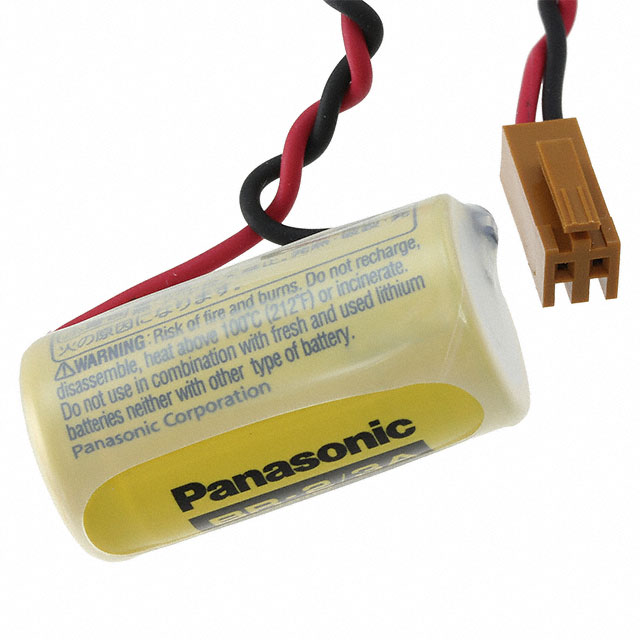

BATTERY LITHIUM 3V 2/3 A

Search across all available documentation for this part.

Active

Panasonic Industrial Automation Sales

BATTERY LITHIUM 3V 2/3 A

Technical Specifications

Parameters and characteristics for this part

Specification	AFP8801

Battery Cell Size	2/3A
Battery Chemistry	Lithium
Capacity	1.2 Ah
Discharge Rate	2.5 mA
Shipping Info	Due to restrictions, only ground shipment is allowed.
Size / Dimension [diameter]	0.67 in
Size / Dimension [diameter]	17 mm
Size / Dimension [z]	1.32 in
Size / Dimension [z]	33.5 mm
Voltage - Rated	3 VDC
Weight	90.72 g

Part	Voltage - Rated	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	Capacity	Battery Cell Size	Battery Chemistry	Discharge Rate	Weight	Shipping Info
Panasonic Industrial Automation Sales AFP8801	3 VDC	1.32 in	33.5 mm	0.67 in	17 mm	1.2 Ah	2/3A	Lithium	2.5 mA	90.72 g	Due to restrictions only ground shipment is allowed.

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2/3A Lithium 3 V Battery Non-Rechargeable (Primary)
