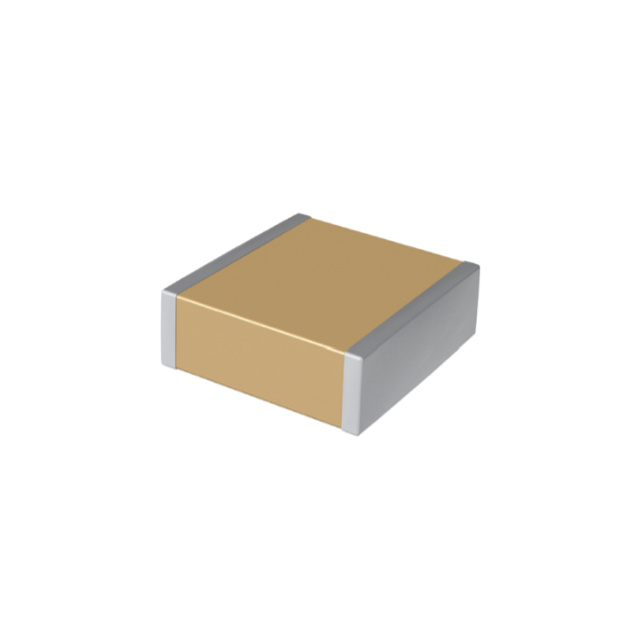

404027K03P30BQRAF9LM
ActiveKnowles Syfer
CAP CER 3.3PF 7KV C0G 4040
404027K03P30BQRAF9LM
ActiveKnowles Syfer
CAP CER 3.3PF 7KV C0G 4040
Description
General part information
404027K03P30BQRAF9LM
3.3 pF ±0.1pF 7000V (7kV) Ceramic Capacitor C0G, NP0 4040 (1010 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | 404027K03P30BQRAF9LM |
|---|---|
| Applications | High Frequency, RF, Microwave |
| Capacitance | 3.3 pF |
| Features | Low Loss, Non-Magnetic, High Q |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 4040 (1010 Metric) |
| Size / Dimension Length | 0.402 in |
| Size / Dimension Width | 0.402 in |
| Temperature Coefficient | NP0, C0G |
| Thickness (Max) | 0.197 in |
| Tolerance | 0.1 pF |
| Voltage - Rated | 7000 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
