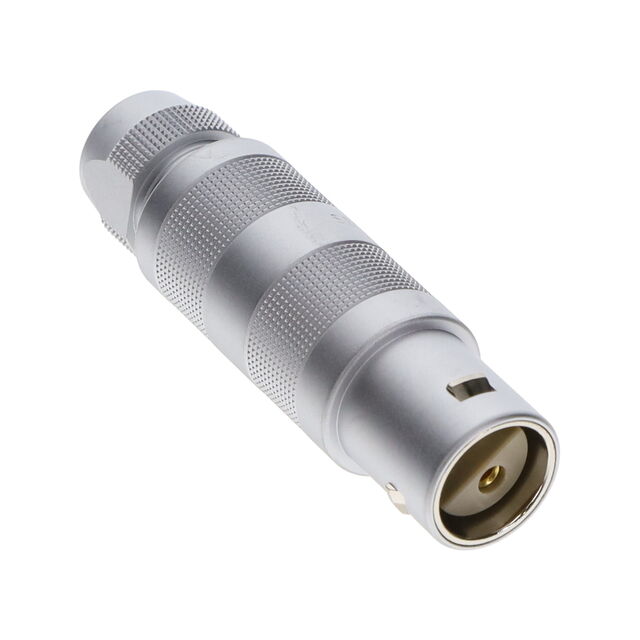

Specification	FFA.3S.303.CLAC62

Backshell Material	Brass
Color	Silver
Connector Type	Male Pins, Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Bronze, Brass
Current Rating	20 A
Fastening Type	Push-Pull
Features	Backshell
Ingress Protection Description	Dust Protected
Ingress Protection IP Rating	IP50
Insert Material	Polyetheretherketone, PEEK
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	3
Operating Temperature (Max)	250 °C
Operating Temperature (Min)	-55 °C
Orientation	Keyed
Plating	Chrome
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	303
Shell Size - Insert	303
Shielding	Shielded
Termination	Solder Cup

FFA Series

Circular Push Pull Connectors GROUNDING LUG

...

Part	Mounting Feature	Insert Material	Material Flammability Rating	Current Rating	Shell Finish	Operating Temperature (Max)	Operating Temperature (Min)	Termination	Contact Finish - Mating	Shielding	Contact Material	Connector Type	Primary Material	Shell Material	Mounting Type	Number of Positions	Orientation	Shell Size - Insert	Shell Size - Insert	Color	Ingress Protection Description	Ingress Protection IP Rating	Fastening Type	Number of Ports	Contact Termination	Center Contact Material	Cable Group	Connector Style	Housing Color	Impedance	Shield Termination	Mating Cycles	Dielectric Material	Includes Total Count	Includes	Body Material	Body Finish	Center Contact Plating
LEMO ERA.0S.302.CLL	Bulkhead Rear Side Nut	PEEK Polyetheretherketone	UL94 V-0	10 A	Chrome	250 °C	-55 °C	Solder Cup	Gold	Shielded	Brass Bronze	Female Sockets Male Pins Receptacle	Metal	Brass	Panel Mount	2	Keyed	302	302	Silver	Dust Protected	IP50	Push-Pull
LEMO ERA.0S.650.CTL	Bulkhead Rear Side Nut					250 °C	-55 °C					Female Socket Recepture			Panel Mount						Dust Protected	IP50	Push-Pull	1	Solder Cup	Beryllium Copper	178 RG-174	Triaxial	Silver	50 Ohm	Solder	1000 cycles	Polytetrafluoroethylene (PTFE)	3 pcs	Connector Lockwasher Nut	Brass	Chrome	Gold
LEMO ERA.0S.303.CLL	Bulkhead Rear Side Nut	PEEK Polyetheretherketone	UL94 V-0	7 A	Chrome	250 °C	-55 °C	Solder Cup	Gold	Shielded	Brass Bronze	Female Sockets Male Pins Receptacle	Metal	Brass	Panel Mount	3	Keyed	303	303	Silver	Dust Protected	IP50	Push-Pull
LEMO ERA.0S.302.CLLX	Bulkhead Rear Side Nut	PEEK Polyetheretherketone	UL94 V-0	10 A	Chrome	250 °C	-55 °C	Solder Cup	Gold	Shielded	Brass Bronze	Female Sockets Male Pins Receptacle	Metal	Brass	Panel Mount	2	Keyed	302	302	Silver	Dust Protected	IP50	Push-Pull
LEMO ERA.0S.403.CTL	Bulkhead Rear Side Nut	Polytetrafluoroethylene PTFE		4 A	Chrome	250 °C	-55 °C	Solder Cup	Gold	Shielded	Bronze	Female Sockets Receptacle	Metal	Brass	Panel Mount	1	Keyed	403	403	Silver	Dust Protected	IP50	Push-Pull
LEMO ERA.0S.650.CTN	Bulkhead Rear Side Nut					250 °C	-55 °C					Female Socket Recepture			Panel Mount						Dust Protected	IP50	Push-Pull	1	Solder Cup	Beryllium Copper	178 RG-174	Triaxial	Silver	50 Ohm	Solder	1000 cycles	Polytetrafluoroethylene (PTFE)	3 pcs	Connector Lockwasher Nut	Brass	Chrome	Gold
LEMO ERA.0S.116.CTL	Bulkhead Rear Side Nut	Polytetrafluoroethylene PTFE		12 A	Chrome	250 °C	-55 °C	Solder Cup	Gold	Shielded	Bronze	Female Sockets Receptacle	Metal	Brass	Panel Mount	1	Keyed	116	116	Silver	Dust Protected	IP50	Push-Pull
LEMO ERA.0S.403.CLL	Bulkhead Rear Side Nut	PEEK Polyetheretherketone	UL94 V-0	4 A	Chrome	250 °C	-55 °C	Solder Cup	Gold	Shielded	Bronze	Female Sockets Receptacle	Metal	Brass	Panel Mount	1	Keyed	403	403	Silver	Dust Protected	IP50	Push-Pull
LEMO ERA.0S.650.CTAZ	Bulkhead Rear Side Nut					250 °C	-55 °C					Male Pin Receptacle			Panel Mount						Dust Protected	IP50	Push-Pull	1	Solder Cup	Beryllium Copper	178 RG-174	Triaxial	Silver	50 Ohm	Solder	1000 cycles	Polytetrafluoroethylene (PTFE)	3 pcs	Connector Lockwasher Nut	Brass	Chrome	Gold
LEMO ERA.0S.650.CTA	Bulkhead Rear Side Nut					250 °C	-55 °C					Male Pin Receptacle			Panel Mount						Dust Protected	IP50	Push-Pull	1	Solder Cup	Beryllium Copper	178 RG-174	Triaxial	Silver	50 Ohm	Solder	1000 cycles	Polytetrafluoroethylene (PTFE)	3 pcs	Connector Lockwasher Nut	Brass	Chrome	Gold
