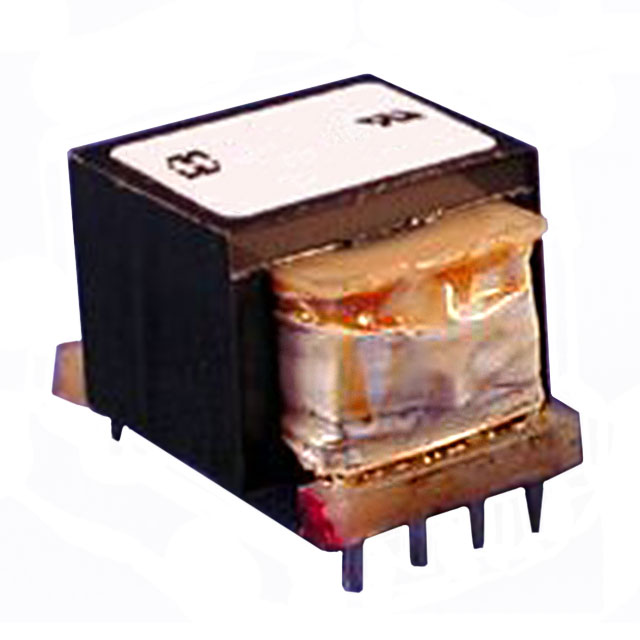

160D12
ActiveHammond Manufacturing
PWR XFMR LAMINATED 1VA TH
160D12
ActiveHammond Manufacturing
PWR XFMR LAMINATED 1VA TH
Description
General part information
160D12
PWR XFMR LAMINATED 1VA TH
Technical Specifications
Parameters and characteristics for this part
| Specification | 160D12 |
|---|---|
| Center Tap | No |
| Current - Output (Max) Parallel | 140 mA |
| Current - Output (Max) Series | 70 mA |
| Height - Seated (Max) | 21.08 mm |
| Mounting Type | Through Hole |
| Power - Max | 1 VA |
| Primary Winding(s) | Dual |
| Secondary Winding(s) | Multiple Taps, Single |
| Size / Dimension Length | 1 in |
| Size / Dimension Width | 35.05 mm |
| Termination Style | PC Pin |
| Type | Laminated Core |
| Voltage - Isolation | 2000 V |
| Voltage - Primary | 230V, 115V |
| Voltage - Secondary (Full Load) (Parallel) | 6.3 V |
| Voltage - Secondary (Full Load) (Series) | 12.6 V |
| Weight | 0.13 lbs |
